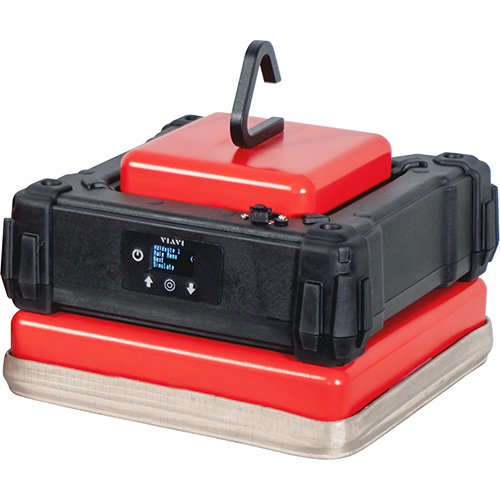

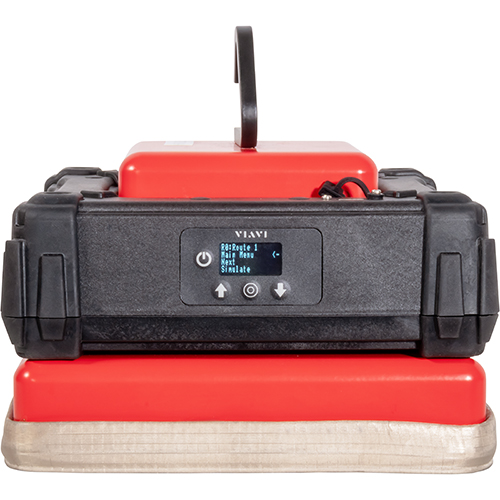

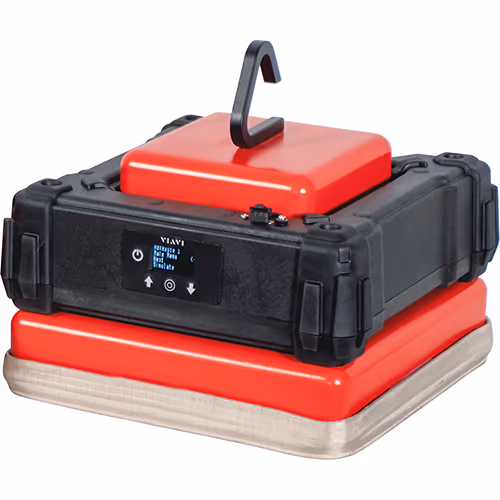

OSPREY GPS Simulator | Single Coupler

Select Configuration

VIAVI

Call For Pricing

In stock

EDMO # OSPREY-1

MFR Part # 22186199

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The VIAVI OSPREY (Operational Simulated Positioning for Real-time Evaluation of Systems) GPS Simulator provides static waypoints and dynamic routes to be simulated for avionics testing purposes. Daily Almanac data can be seamlessly uploaded to the OSPREY, simplifying the process of ensuring a position lock for GPS Receivers. The OSPREY GPS Simulator Controller can also be purchased and used without the VIAVI GPS coupler, for use with your existing coupler or via direct connect.

This OSPREY GPS Simulator (EDMO# OSPREY-1) is designed for single antenna aircraft.

Features

Fully self-contained with on-screen battery indicator and real time clock
Store, recall and simulate 20 static waypoints and 20 dynamic routes
Automated Almanac upload process
10-channel configuration
Remote control interface via mobile application for both iOS and Android devices

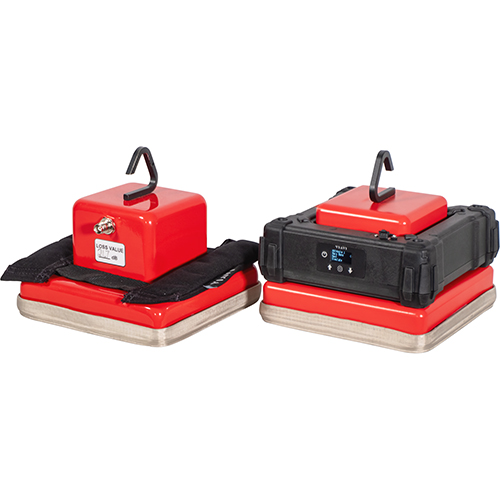

Single or dual GPS antenna configurations
Direct connection to GPS receiver
GPS signals simulated: L1
Firmware updates via USB
Verification of system installations
Efficient ADS-B testing
Train technicians on new avionics installs
Train pilots on upgraded avionics prior to flight
Testing XM Weather systems
Global Avionics Test Set Support

Also Purchased

Specifications

Weight:

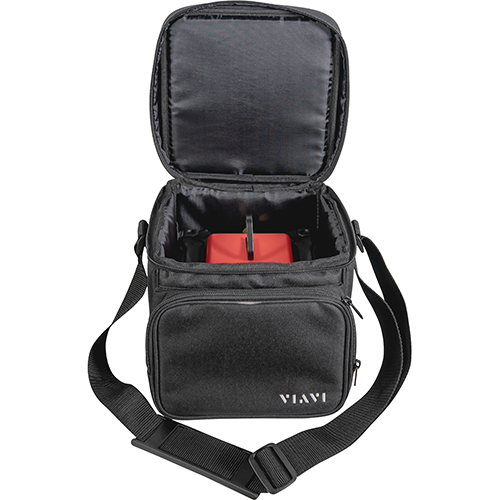

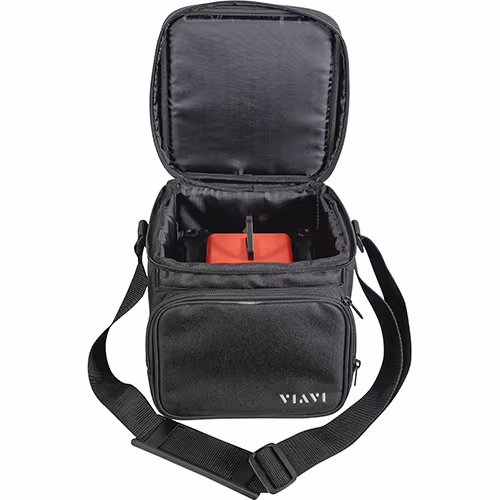

6.5 lb (3 kg), Single Case Carrying Case Dimensions: 10 x 9 x 9 in (25.4 x 23 x 23 cm); Single Case Coupler Dimensions: 7.5 x 7.5 x 7 in (19 x 19 x 17.75 cm)
