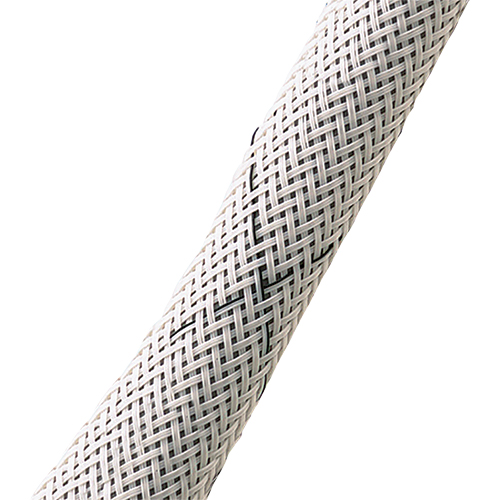

PFA-ECM Protect-Fast Braided Sleeving | 3/4in, 75ft roll, White with Black Tracer

DEVICE TECHNOLOGIES

Call For Pricing

Available to order

EDMO # PFAECM4WT7

MFR Part # PFA-ECM 4-WT-0075

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Protect-Fast Advanced Braided Wraps & Sleeving provide enhanced wiring protection and containment for cable assemblies, hoses and wire harnesses in critical industries with challenging conditions like higher temperatures, chemical or flame exposure. They will keep data flowing and provide containment and identification for easier troubleshooting.

This Aero Braid sleeving (EDMO# PFAECM4WT7) has a nominal size of 3/4-inch, is white with black tracer, and ships on a 75-foot mini roll.

Features

Nominal size: 3/4 inch
Expansion range: 1/2 - 1-1/4 inch
Mini roll sizes: 75 ft
Color: white with black tracer
Wide operating temperature ranges; melt temperature: 285°C
Resistant to chemicals and corrosion
High and medium abrasion resistance
Low and medium outgassing

Specifications

Material:

ECTFE copolymer monofilament
Monofilament Diameter:

0.011 in
Wall Thickness:

0.028 in
Flammability Rating:

UL VW-1
Industry Standard Approvals:

UL 2024 Plenum NFPA 262 Plenum FAR 25 FMVSS 302
Expansion:

150% sleeve
Operating Temperature:

-75°C to 150°C (-103°F to 302°F)
Melting Temperature:

250°C (482°F)
Corrosion Resistance:

Strong acids, Chlorine, aqueous caustics, gasoline, engine chemicals
Abrasion Resistance:

Medium
Recommended Cutting:

With hot knife
Outgassing:

Low
