PS-2850 Series APU & Battery Charger | 50A, 28VDC, 220V, 60Hz, Piper


DB ASSEMBLY, INC

Call For Pricing
Available to order
EDMO # PS-2850AEP
MFR Part # P-2850AEP
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

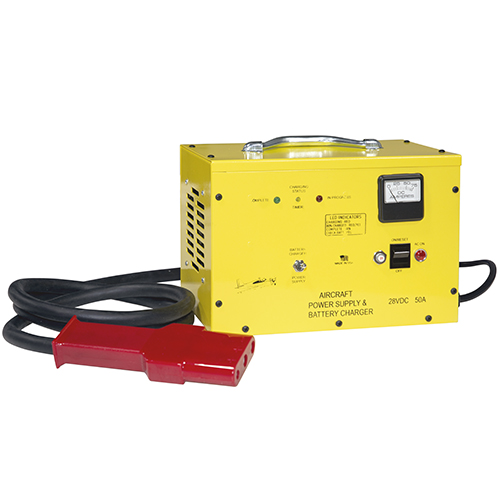

The Bycan PS-2850 Series Aircraft Ramp Power Supply and Battery Charger is a dual-purpose aircraft flight line service and maintenance tool. The unit has a filtered 28 volt DC power supply with up to 50 amperes capability for tests of aircraft electrical systems and a secondary mode for recharging run-down batteries. This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

Version PS-2850AEP  is designed as a power supply and battery charger unit with a 60Hz frequency, 220V, 50A, and also includes the Piper coaxial connector.

Features

  • 50 amperes filtered 28 volt supply
  • Plugs directly to aircraft APU connector
  • Activated by electrical system master switch
  • Aircraft APU connectors furnished
  • Front panel switching functionality
  • On/off switch on the unit also resets the unit
  • Operates from 115 VAC, 60 Hz
  • AC circuit breaker included
  • 7 foot DC cable furnished
  • Portable
  • Ferro-resonant regulated supply

Specifications

  • Weight:
    45 lb
  • Dimensions:
    12 x 8 x 9 in
  • Input voltage:
    220VAC
  • AC input amperage:
    18A
  • Input frequency:
    60Hz
  • Output voltage:
    28VDC
  • DC output amperage:
    50A
  • Output wattage:
    1400W

Related Products

Product Codes

  • Mfr Part No
    P-2850AEP
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8504.40.0000
