PS-2850 Series APU & Battery Charger | 50A, 28VDC, 115V, 60Hz, Piper

PS-2850P .jpg

DB ASSEMBLY, INC

Call For Pricing
In stock
EDMO # PS-2850P
MFR Part # P-2850P
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

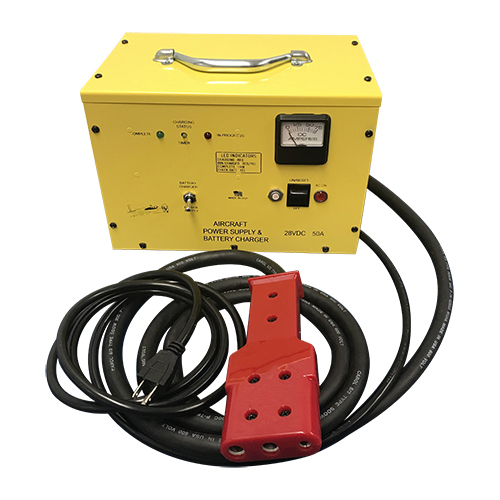

The PS-2850 Aircraft Ramp Power Supply and Battery Charger is a dual-purpose aircraft flight line service and maintenance tool. The unit has a filtered 28 volt DC power supply with up to 50 amperes capability for tests of aircraft electrical systems and a secondary mode for recharging run-down batteries. This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

Version PS-2850P is designed as a power supply and battery charger unit with a 60Hz frequency, 115V, 50A, and includes the Piper coaxial connector.

Features

  • 50 amperes filtered 28 volt supply
  • Plugs directly to aircraft APU connector
  • Activated by electrical system master switch
  • Aircraft APU connectors furnished
  • Front panel switching functionality
  • LED charging status indicator
  • Fully automatic charging process
  • On/off switch on the unit also resets the unit
  • Operates from 115 VAC, 60 Hz
  • AC circuit breaker included
  • 7 foot DC cable furnished
  • Portable
  • Ferro-resonant regulated supply

Specifications

  • Weight:
    45 lb
  • Dimensions:
    12 x 8 x 9 in.
  • Input voltage:
    115VAC
  • AC input amperage:
    18A
  • Input frequency:
    60Hz
  • Output voltage:
    28VDC
  • DC output amperage:
    50A
  • Output wattage:
    1400W

Related Products

Product Codes

  • Mfr Part No
    P-2850P
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8504.40
