RB-14/28-25 Series APU | 25A, 14/28VDC, 50Hz, 220V, Piper

DB ASSEMBLY, INC

Call For Pricing

Available to order

EDMO # RB142825EP

MFR Part # R-14/28-25EP

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

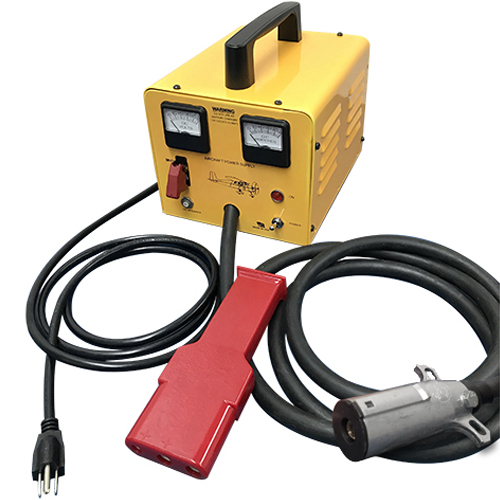

The RB-14/28-25 Series Aircraft Ramp Power Supply is an aircraft flight line service and maintenance tool. The APU unit has a filtered 14 or 28 volt DC power supply with an amperage capability up to 25 amperes for testing of aircraft electrical systems. This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

Version R-14/28-25EP is designed as a power supply only unit with a 50Hz frequency, 220V, 25A, and includes the Piper coaxial connector.

Features

50 amperes filtered 14 volt supply
Plugs directly to aircraft APU connector
Activated by electrical system master switch
Aircraft APU connectors furnished
Front panel switching functionality
LED charging status indicator
Fully automatic charging process
On/off switch on the unit also resets the unit
Operates from 220 VAC, 50 Hz
AC circuit breaker included
7 foot DC cable furnished
Portable
Ferro-resonant regulated supply

Specifications

Weight:
Specification

38 lb
Dimensions:
Specification

12 x 8 x 9 in.
Input voltage:
Specification

220VAC
AC input amperage:
Specification

9A
Input frequency:
Specification

50Hz
Output voltage:
Specification

14VDC
DC output amperage:
Specification

50A
Output wattage:
Specification

700W

Product Codes

Mfr Part No

R-14/28-25EP
ECCN

EAR99
SCHEDULE B CODE

8504.40.9530
