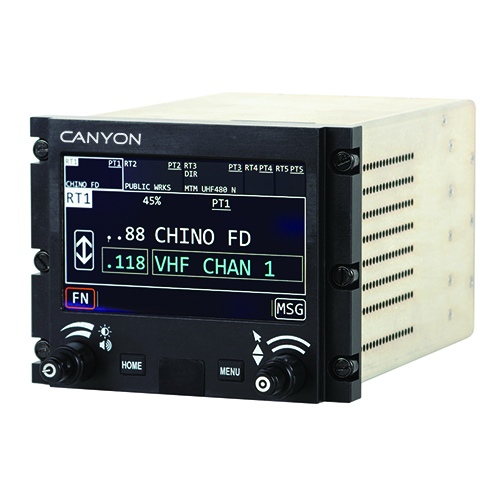

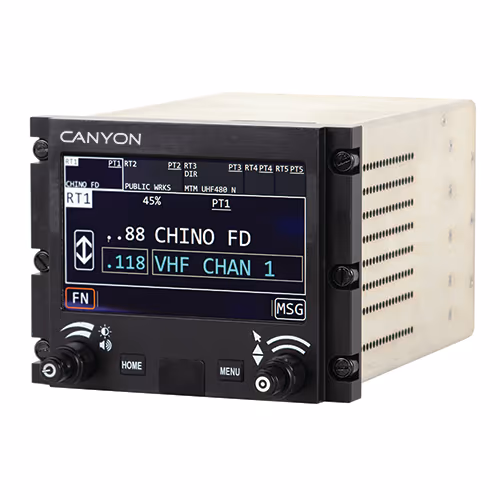

RT-7000 Panel Mount Tactical Radio | Single APX all bands, P25 phase 1 and 2 trunking, multi-key AES/DES/DES-XL/DES-OFB

Product Description

The RT-7000 Panel Mount Tactical Radio satisfies all public safety and para-public voice communications needs. This unit supports 29.7 MHz to 960 MHz communications with up to three embedded and individual channels, thus providing the equivalent of three individual radios with the ability to support up to two external handheld radios. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.

The RT-7000 is a software-defined device which can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. This unit is equipped with an integrated audio and radio control display. All audio and radio functions can be controlled using either the touchscreen display or the dual concentric front panel knobs.

This variant of the RT-7000 panel mount tactical radio (EDMO# RT7P51716) includes Single APX all bands, P25 phase 1 and 2 trunking, multi-key AES/DES/DES-XL/DES-OFB

Specifications

• Weight:
  8.5 lb (3.85 kg), maximum
• Dimensions:
  7 x 5.75 x 4.38 in
• Voltage requirements:
  27.5 VDC ±20%
• Temperature:
  -4°F to 131°F (-20°C to 55°C)
• Channeling:
  6.25/8.33/12.5/25 kHz
• Certification:
  TSO/ETSO 169a ATC COM & C113 Display
• Frequency range:
  AM/FM analog 29.7-960 MHz, including bands: 30 - 50 MHz LMR 30 - 88 MHz military 87.5 - 108 MHz FM broadcast 108 - 118 MHz VOR voice 118 - 154 ATC and Civil Air Patrol 136 - 174 MHz LMR 156 - 174 MHz Maritime 225 - 400 MHz Military 380 - 520 MHz LMR 764 - 960 MHz LMR
• Transit Power:
  ATC COMS: 4W, minimum AM: 4W, minimum FM: 10W, minimum P-25: VHF - 6W, UHF - 5W, 700/800 MHz - 3W
• APCO P-25:
  All P-25 Bands - Conventional Common Air Interface (CAI), Phase I, II Trunking, Analog Trunking (SmartZone, SmartNet)
• Encryption:
  FIPS 140-2, Level 2/3 P-25 AES & DES Analog DES, DES-XL, DVP P-25 OTAR Multikey

Product Codes

• Mfr Part No
  RT7000PMR-005-001-0007-0016

Documentation

• RT-7000 Transceiver Module Options.pdf
• RT-7000PMR Brochure.pdf
