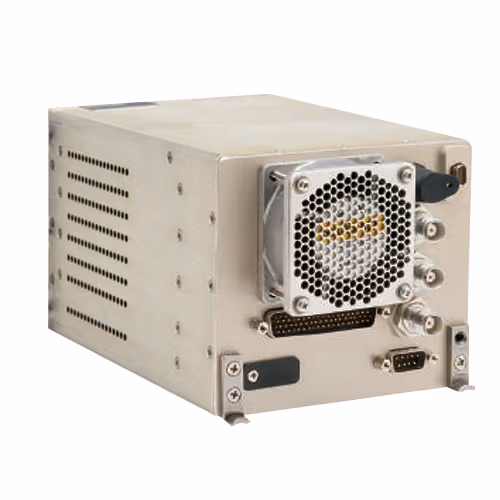

RT-7000 Remote Mount Tactical Radio | 1 APX card with VHF, UHF, 700 & 800 MHz, 1 SAR card; & P25 Phase 1 and 2 Trunking, Multikey AES/DES/DES-XL/DES-OFB, and OTAR, OTAP, FCC Narrowband
CANYON AEROCONNECT
EDMO#: RT7R103725
MFR#: RT7000RMR-010-003-0007-0025
Description
The RT-7000 Remote Mount Tactical Radio (RMR) is an LRU that is designed for rack mounted installations in fixed wing aircraft and helicopters and will satisfy all public safety and para-public voice communications needs. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.
As a software-defined device, the RT-7000 can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. The Remote-Mount Radio can be controlled by a PMR, RCDU, or MCDU with an interface control document available for selected MCDU's.
This RT-7000 Remote Mount Radio (EDMO# RT7R103725) includes 1 APX card with VHF, UHF, 700 & 800 MHz, 1 SAR card; & P25 Phase 1 and 2 Trunking, Multikey AES/DES/DES-XL/DES-OFB, and OTAR, OTAP, FCC Narrowband.
Features
- Remote mount radio unit is designed for remote installation and controlled by a PMR, RCDU, or MCDU
- Each LRU accommodates up to three transceivers: Motorola APX 8000, Wideband, and search & rescue
- Connectivity for up to two handheld devices
- Designed for maximum interoperability and upgradability
- Supports 29.7 MHz to 960 MHz communications with three embedded and individual channels,
- ATC communications, P-25 Phase 1 & 2 digital modulation, trunking, SmartZone, and SmartNet
- Flight tunable — including P-25 frequency and NAC data
- Programmable preset channels (up to 1000)
- Programmable scan patterns
- Embedded simulcast and relay operations
- TSO/ETSO for Comm and display
- Multikey FIPS-140-2 encryption
Specifications
Weight:
8.5 lb (3.85 kg), maximum
Dimensions:
7 x 5.75 x 4.38 in
Voltage Requirements:
27.5 VDC ±20%
Temperature:
-4°F to 131°F (-20°C to 55°C)
Channel Spacing:
6.25/8.33/12.5/25 kHz
Certification:
TSO/ETSO 169a ATC COM & C113 Display
Frequency Range:
29.7 MHz – 960 MHz AM/FM analog
30 MHz – 50 MHz LMR
30 MHz – 88 MHz military
87.5 MHz – 108 MHz FM broadcast
108 MHz – 118 MHz VOR voice
118 MHz – 154 ATC and Civil Air Patrol
136 MHz – 174 MHz LMR
156 MHz – 174 MHz Maritime
225 MHz – 400 MHz Military
380 MHz – 520 MHz LMR
764 MHz – 960 MHz LMR
Transit Power:
ATC COMS: 4W, minimum
AM: 4W, minimum
FM: 10W, minimum
P-25: VHF – 6W, UHF – 5W, 700/800 MHz – 3W
APCO P-25:
All P-25 Bands — Conventional Common Air Interface (CAI), Phase I, II Trunking, Analog Trunking (SmartZone, SmartNet)
Encryption:
FIPS 140-2, Level 2/3
P-25 AES & DES
Analog DES, DES-XL, DVP
P-25 OTAR
Multi-key
Product Codes
Mfr Part No :
RT7000RMR-010-003-0007-0025
SCHEDULE B CODE :
8525.60.1055
