Product Description

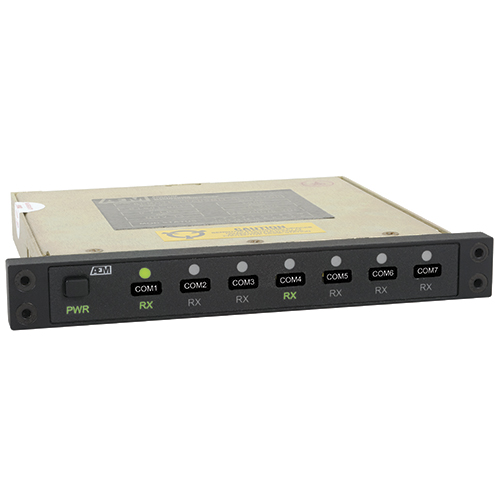

The RTS01 Remote Transmit Selector Panel adds capabilities and functions to any existing analog audio system to offer operators the benefits of remote transmit section (RTS), RX Activity Indication, and audio system expansion. Installation is designed to be simple with little to no impact on existing audio system wiring. The use of an external toggle switch allows pilots and operators to select a transceiver without the need to reach for the audio panel during busy flight operations so that full attention remains on critical aircraft controls and operations.

The RX Active feature allows pilots and operators to monitor which transceiver is currently active so that they can determine which radio they are actually listening to at any one time; the RX annunciator illuminates to show which transceiver is currently active regardless of which audio input is selected. The RTS expansion capability allows additional transceivers to be added to the communications system without having to remove and replace the entire audio system. Snap-in legends provide the ability to customize the label on each transceiver channel. Snap-in legends are required for operation but not included with the RST01 unit and must be ordered separately.

This RTS01 Remote Transmit Selector Panel (EDMO# RTS01-001) has standard lighting and 7 legends required per unit, use part numbers 155-06-xxxx.

Features

An external toggle switch connected to the flight controls provides hands-free selection of transceiver channels
RX ACTIVE detection feature illuminates a RX annunciator to indicate which transceiver is currently receiving audio signal
The RTS01 maybe incorporated as expansion panel with support for up to 7 transceivers
A wrap-around feature can be enabled or disabled for incrementing and decrementing transceiver selection when using an external toggle switch
An RX ONLY feature allows received audio for com 5, 6, and 7 to be individually monitored regardless of which transceiver is selected
Snap-in legends are used in the front panel to allow customizable labeling for radio positions; legends are required to operate the RTS01 but are not included
Night vision goggle (NVG) mode available on some models; available with NVIS Green A backlighting and NVIS Green B annunciator

Specifications

Weight:

0.8 lb
Dimensions (Maximum):

0.75 x 5.00 x 5.75 in (19.05 x 127.0 x 146.1 mm)
Dimensions (Behind the Panel):

0.75 x 4.56 x 5.00 in (19.05 x 115.8 x 127.0 mm)
Mounting:

Standard Dzus mounting (four fasteners)
Faceplate:

Lexan polycarbonate
Connectors:

1 x 44 pin D-sub plug (male) 1 x 44 pin D-sub socket (female) V5 locking hardware
Materials/Finish:

Chassis and cover are brushed aluminum with chromate conversion
Operating Temperature:

-40°C to 70°C
Survival Temperature:

-55°C to 85°C
Altitude:

35,000 ft max.
Humidity:

95% at 50°C for 48 hrs
Shock:

6g for 11 ms
Electrical:
Input Operating Voltage:

28 VDC nominal 30.3 VDC maximum 22 VDC minimum 18 VDC emergency
Input Power Requirements:

400 mA max @ 28 VDC nominal 1.0 mA max @ 5 VDC 1.0 mA max @ 28 VDC max
Input Signals:
Microphone Audio (MIC Outputs from Audio Controller):

Quantity: 7 Circuit type: feedthrough/passive Rated level: 250 mVrms
RMT Microphone Audio:

Quantity: 1 Circuit type: single ended Rated level: 250 Vrms Impedance: 150Ω ±10% (fixed, AC impedance), 480Ω ±10% (fixed, DC impedance) MIC Bias: 12V DC (unloaded)
Transceiver Receiver Audio:

Quantity: 7 Circuity type: single ended Rated level: 7 Vrms max Impedance: 9.4kΩ ±10%
Transmit Keylines (from Audio Controller):

Quantity: 7
RMT Transmit Keylines (RMT TX keyline from Audio Controller):

Quantity: 7 Rated level: active Lo (≤11.5 VDC)
Remote Transmit Selection:

Quantity: 2 (RMT UP, RMT DN) Rated level: active Lo (≤11.5 VDC)
NVG Mode:

Quantity: 1 Rated level: active Lo (≤ 11.5 VDC)
Output Signals:
Microphone Audio (MIC Outputs to Transceivers):

Quantity: 7 Circuit type: single ended Rated level: 250 VRMS nominal into 150Ω Frequency response: 60 dB below rated output
Transceiver Receiver Audio (COM RX to Audio Controller):

Quantity: 7 Circuit type: feedthrough/passive Rated level: 7.00 VRMS into 1 kΩ
RMT Transceiver Receiver Audio (RMT COM RX to Audio Controller):

Quantity: 1 Circuit type: single ended Rated level: 7.00 VRMS into 1 kΩ Frequency response: 60 dB below rated output
Transmit Keylines (to Transceivers):

Quantity: 7 Circuit type: open drain Rated level: active 1 MΩ to power ground
