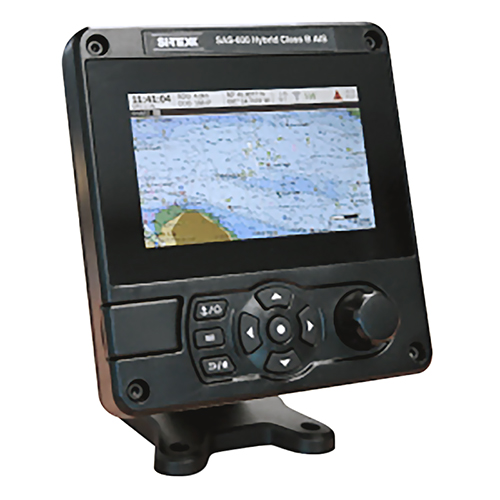

SAS-600 Class B SOTDMA AIS Transceiver | 5-watt

Si-Tex

Call For Pricing

Available to order

EDMO # SAS-600

MFR Part # SAS-600

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SAS-600 is a fully certified, 5-watt SOTDMA class B AIS transceiver with the same network priorities as commercial class A AIS transceivers. The five-watt transmitter, which is more than traditional class B transceivers, allows your vessel to be seen at longer ranges. SOTDMA class A priorities ensure your vessel will always transmit and be seen in congested commercial ports. Built-in 802.11 b/g/n long range WIFI allows AIS data to be sent to any WIFI connected device.

Features

Three NMEA-0183 data ports & NMEA-2000 intelligent connectivity to all bridge systems
High-Definition 5.7-inch, full-color, sunlight visible day-night dimmable LCD display
Uses C-Map Max Cartography
Built-In GPS & GLONASS satellite navigation receiver packaged with a commercial quality external GPS antenna
Easily flush mountable without special brackets and includes with a rugged pedestal mount
Water and weather-proof certified to IPX6 & IPX7
MOB & SART alert tracking system
Receives and decodes all AIS messages
Ultra-power efficient Intuitive easy to use multi-lingual menu system
Send and receives AIS text messages to selected vessels and safety related messages
AIS CPA/TCPA collision alarms

Specifications

AIS Transceiver Weight:

1.5 kg AIS Transceiver Dimensions: 152 x 165 x 111 mm Compass Safe Distance: 0.5 m (AIS Transceiver) Safe Operating Distance: 20 cm from the antenna Operating Temperature Range: -15°C to 55°C Maximum Operating Humidity: 90% at 40°C, non-condensing Water Ingress Rating: IPx6, IPx7 Supply Voltage: 12 VDC — 24 VDC (absolute min. 10.8V, absolute max. 31.2 V) Power Consumption: Current Consumption: @12 VDC supply 0.9A typical, 4.0A peak Current Consumption: @24 VDC supply 0.5A typical, 3.0A peak Display: 800 x 480 Pixel Color LCD with Adjustable Backlight Luminance: 500cd/m 2 max, 75cd/m 2 default Recommended Viewing Distance: 45cm Keypad: Five function keys and three menu keys with adjustable backlight Rotary Control: Encoder with push function Speaker: 600mW @ 750Hz 11 x 15mm
