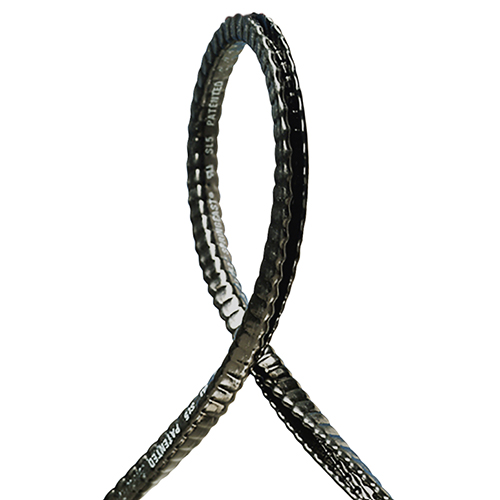

SpringFast® SL Series Grommet Edging | Black, 0.044–0.056 in Panel Thickness, 25 ft Reel

SpringFast® SL Series Grommet Edging | Black, 0.044–0.056 in Panel Thickness, 25 ft Reel

DEVICE TECHNOLOGIES

Call For Pricing
In stock
EDMO # SL2-0025-
MFR Part # SL2-0025-ER0201
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Spring-Fast® SL Series plastic trim has a low profile and is encapsulated with a fusion bonded nylon substrate that offers superior abrasion resistance. The soft polymer cushion provides a soft surface to protect wire and cables while its strong gripping strength holds in severe shock and vibration environments while maintaining 4-axis flexibility.

This SL series plastic trim (EDMO# SL2-0025-) fits on panels 0.044–0.056 in (1.1–1.4 mm) thick, has a width of 0.212 in (5.4 mm) and is colored black.

Features

  • Stainless steel substrate
  • Flammability rating: UL94 V-0
  • RoHS Compliant
  • DFARS Compliant
  • Multi axis flexibility
  • Indoor or outdoor use
  • High gripping strength
  • High corrosion resistance
  • High dielectric strength
  • High shock and vibration resistance per rms G 41.7
  • Multi-axis flexibility for rounded inside and outside corners
  • Continuous edge protections on flanged holes, 1/8 inch or greater inside radius and 1/4 inch or greater outside radius

Also Purchased

Specifications

  • Size:
    0.044–0.056 in (1.1–1.4 mm)
  • Width:
    0.212 in (5.4 mm)
  • Axis Conformity:
    Multi
  • Substrate:
    Stainless Steel, ASTM A 666-03
  • Finish:
    TPE Encapsulation
  • Vicat Softening Point:
    ISO306 230ºF (110ºC), ASTM D01525 Rate B
  • Operating Temperature:
    -67°F to 203°F (-55°C to 95°C), MIL-STD-202G, Method 107G, Table 107-1
  • Low Temperature Soak:
    -40°F (-40°C), MIL-STD-810E, Method 502.3
  • Temperature Cycling:
    -67°F to 203°F (-55°C to 95°C), MIL-STD-202G, Method 107G, Table 107-1
  • Humidity:
    No physical change, MIL-STD-810F, Method 502.3 Procedure 1
  • Dielectric Withstanding Voltage:
    2,000 V @ 60 Hz, NASM22529 Paragraph 4.2.9
  • Abrasion Resistance:
    25 mg Loss ASTM D1044, 1Kg Load, C17 Wheel @ 1000 cycles No change in weight or dielectric strength, DTi Abrasion Resistance Test 250,000 cylces @ 60 cylces/min
  • Salt Spray Hours:
    500 MIL-STD-202F, Method 101D
  • Immersion:
    No physical change, NASM22529, MIL-H-5606, MIL-T-5624,
  • Mechanical Shock:
    No movement or physical change MIL-STD-810C Method 516.2 Test Procedure IV Drop Test @ 100 g force per 3 perpendicular axes
  • Random Vibration:
    No movement or physical change MIL-STD-202 Method 214A Table 1, Duration: 8 hours in 3 perpendicular axes over GRMS 39
  • Flammability:
    No sustained flame front or drips, ASTM E 162 Tested, FAR 25.853 (A), and UL94 V-0
  • Smoke Density:
    Test period 90 sec., 4 min., 20 min. with no flaming, dripping, or running, ASTM E 662 Tested, FAR 25.853 (D)
  • Flammability Certifications:
    FAR 25.853 (A) UL94 V-0 (File No. E113553 NZMT2)
