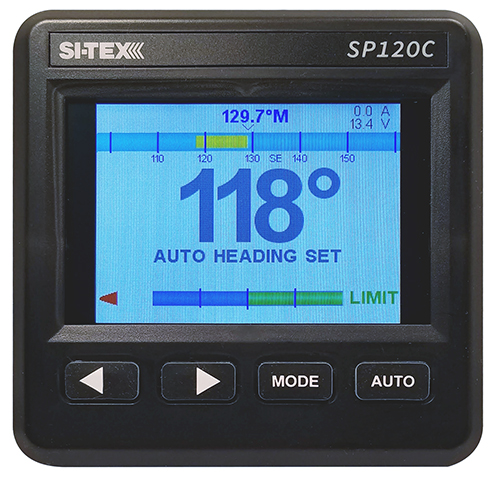

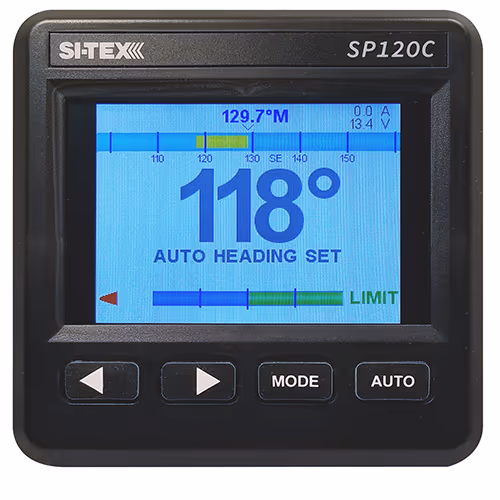

SP-120C Autopilot | Color LCD Display, 9-Axis Compass, Rudder Feedback & 18CI reversing Hyd. Pump

Si-Tex

Call For Pricing

Available to order

EDMO # SP120CRF-2

MFR Part # SP120C-RF-2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SI-TEX SP-120C is an Autopilot designed for hydraulic, mechanical, & solenoid control steering systems, and does not require a separate junction box — simply connect everything to the rear back of the control head. It is ideal for small vessels under 38 feet. The SP-120C displays the actual compass heading and select heading along with rudder angle.

Features

Operate in either Virtual Rudder feedback mode in the case of outboards or a separate Rudder Feedback unit can be added for inboard vessels
Compact 4.1 x 4.1 inch splash-proof control head with large easy to read color LCD display
Extremely easy to select your desired headings, operate, and setup, with user-friendly software
High-precision 9-axis gyro compass allows for quick adjustment for varying sea conditions
Uses input of GPS speed over ground (SOG) and course over ground (COG) to
enhance performance
NMEA-0183 GPS interface accepts inputs from most chart plotters for steering to waypoints
and routes
NMEA-0183 Output of compass heading at 10kHz for interface to MFD’s with chart/radar
overlay

Specifications

Waterproof:

IPX6 Control Head Dimensions: 110 x 110 mm Voltage supply: 12VDC/24VDC Display: LCD Color Indicators: constant compass heading indicator & rudder angle Current consumption: 0.5A at 12VDC, standby mode Current Output: 15 Amps, maximum drive Operating temperature: -10°C to 55°C Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output Course Detection: <1 Degree
