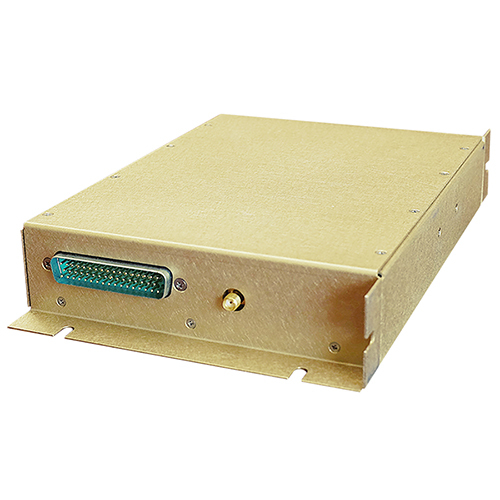

STX 360R Sentinel | Remote Mounted, Mode A/C, UAT, ADS-B Transponder

Product Description

The STX 360R Sentinel is a remote mounted 978 MHz UAT ADS-B device with a built-in Mode A/C transponder for aircraft with limited panel space. The STX 360R is the perfect ADS-B solution for use with navigation systems from other manufactures. To simplify installation and reduce cost, this unit combines both Mode C and UAT into one package.  Wireless output functionality allows the STX 360 to display weather and traffic on portable devices such as iPads and tablet computers.

Specifications

• MODE A/C TRANSPONDER:
• Tranmitter Frequency:
  1,090 MHz
• Receive Frequency:
  1,030 MHz
• Receiver Sensitivity
  : -74 dBm
• Temperature:
  -20°C to 55°C
• Certification:
  DO160G, DO 178C Level C, TSO C75d
• UAT ADS-B:
• Transmitter Frequency:
  978 MHz
• Receiver Frequency:
  978 MHz
• Receiver Sensitivity:
  -93 dBm
• Temperature:
  -20°C to 55°C
• Certification:
  DO160G, DO178C Level C, DO 254 Level C, TSO C154Cc, TSO C195a, TSO C1457a

Product Codes

• Mfr Part No
  STX 360R

Documentation

• STX 360 Brochure
