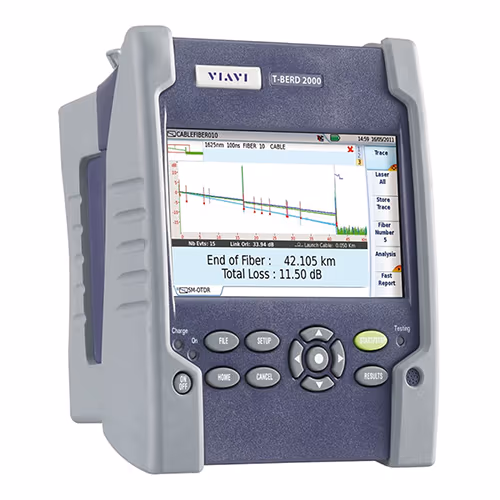

T-BERD 2000 | Short Range 1310/1550 nm OTDR Module (W, Ls and PM)

VIAVI

Call For Pricing

Available to order

EDMO # TB2000FAM

MFR Part # TB2-OTDR-2WLA

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Costs, workflow, quality, network performance, and customer experience are critical for the success of today’s fiber optic networks. Selecting the right test tools has become key toward meeting these needs. The VIAVI Solutions T-BERD-2000 is a handheld multi-test platform that provides field technicians with a single handheld unit to install, turn-up and maintain these networks to the highest standards.

Its innovative design and hands-free bag ensure that all essential fiber test tools are close at hand, whatever the job or location. A large color screen with graphical user interface drives simple operation and optimal workflow in the field.

The T-BERD-2000 integrates various communication capabilities allowing remote control, data and setup uploads/downloads, and report transfer. The unit has one high-speed 1G Ethernet port, three USB ports, and optional WiFi and Bluetooth network connections.

Features

1310/1550 nm OTDR
Includes power meter and VFL
High-visibility touch-screen display
Wide range of field installable OTDR modules including QUAD and PON
Ensure the highest-quality connectorizing, splicing, and turn-up of new fiber links
Improve workflow with hands-free solution, driving best practices to IEC standards
Smarter and faster field testing with simple setup and instantaneous pass/fail results
Boost productivity with improved report generation and flexible connectivity
Smart Access Anywhere (SAA) for remote control & field tech support
StrataSync enabled - centralized cloud based asset, configuration, test data and workflow management

Specifications

Weight: 1.89 lb (0.864 kg), 2.67 lb (1.21 kg) with LM OTDR
Dimensions: 6.9 x 5.4 x 3.2 in (175 x 138 x 80 mm)
Display: 5-inch TFT color touchscreen (12.5 cm) Resolution 800 x 480 WVGA
Interfaces: Two USB 2.0 ports One mini-USB 2.0 ports RJ45 LAN 10/100/1000 Mbps Built-in Bluetooth (optional) Built-in WiFi 802.11 b/g/n (optional)
Internal Memory: 8 GB (1 GB for storage)
Battery: Rechargeable lithium-polymer battery 9 hr operation as per Telcordia GR-196-CORE
Power Supply: AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W Electrical Safety: EN60950-compliant
Operating Temperatures: No options/modules: -4 to 122°F ( -20 to 50°C ) With options/modules: 32 to 104°F ( 0 to 40°C)
Relative Humidity: 0% to 95% noncondensing
