TJT-102 Threaded 4-conductor Telephone Jack
NEXUS
EDMO#: TJT-102
MFR#: TJT-102
Description

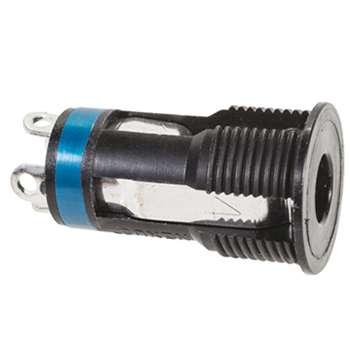

The TJT-102 threaded telephone jack is a front panel-mounted jack with four contacts. Mates with Nexus series TP-120 and TP-102 plugs.
Features
- Panel-mounted version of the TJ-102 jack
- Mates with Nexus series TP-120 and TP-102 plugs
- Includes: TJT-120-3 11/16 internal tooth lock washer, TJT-120-2 11/16 nut
Specifications
Dimensions:
0.719 x 0.719 x 1.391 in
Number of Contacts:
4
Contact Diameter:
0.285 in
Shell Diameter:
plastic
Contact Material:
nickel-plated, beryllium copper
Thread:
11/16-24 UNEF-2A
Standard:
MIL-C-9177
Solder Contact Terminals:
pre-tinned over nickel plating
Contact Resistance:
≤0.02 Ω
Insulation Resistance:
≥1,000 mΩ
Dielectric Withholding Voltage:
≥500 V RMS
Insertion Force:
13 lb, maximum
Withdrawal Force:
6 to 10 lb
Product Codes
Mfr Part No :
TJT-102
MIL SPEC :
M9177/4-1 / MIL-C-9177
ECCN :
EAR99
MIL SPEC :
M9177/4-1 / MIL-C-9177
SCHEDULE B CODE :
8536.69.4020
