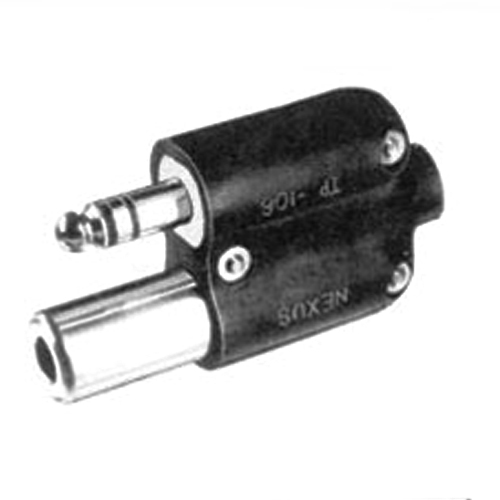

TP-106 Biaxial Shielded 6-Conductor Telephone Plug


NEXUS

Call For Pricing
Available to order
EDMO # TP-106
MFR Part # TP-106
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TP-106 six-conductor telephone plug features a biaxial shielding and mates with Nexus TJ-106 jack.

Features

  • 6-conductor Biaxial Shielded
  • Mates with Nexus TJ-106
  • Includes: TP-106-5 shield, TJ-106-9 jack assembly, TP-106--4 plug assembly, (3) TJ-106-12 screws, (3) TJ-106-13 washers, (3) TJ-106-14 nut, TJ-106-10A strain relief

Specifications

  • Dimensions:
    0.75 x 2.609 in
  • Contact Diameter:
    0.281 in
  • Number of Conductors:
    6
  • Shell Material:
    Plastic
  • Contact Material:
    Nickel-plated brass
  • Solder Contact Terminals:
    Pre-tinned over nickel plating
  • Contact Resistance:
    ≤ 0.02 Ω
  • Insulation Resistance:
    ≥ 1,000 MΩ
  • Dielectric Withstanding Voltage:
    ≥ 500 V RMS
  • Insertion Force:
    13 lb
  • Withdrawal Force:
    6 to 10 lb
