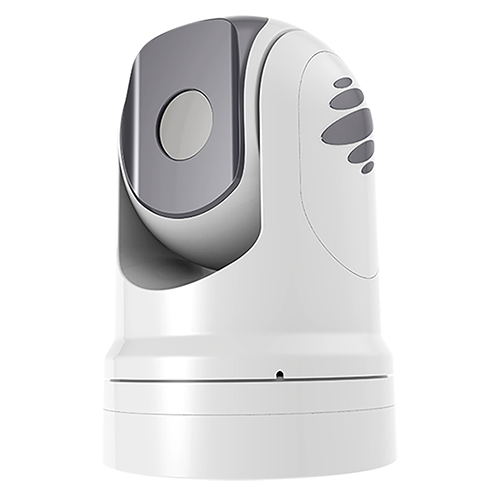

Ulysses Micro S+ High Performance Compact Thermal Camera

Product Description

The Ulysses Micro is a compact marine thermal camera and night vision system specifically designed for small, fast boat installation. As with the larger Ulysses, the Ulysses micro features a high-performance sensing package that delivers a high-speed thermal image with superior clarity and sharpness unseen in competing products. This enhanced performance significantly extends operational safety and confidence at sea in all lighting conditions.

Specifications

• Weight:
  ≤ 5.5 lb
• Dimensions:
  5.5 x 8.7 in
• Thermal Resolution:
  640 x 640
• Field of View:
  24° Horizontal, 18° Vertical
• Stabilization:
  Yes
• Focal Length:
  25 mm
• Sensor Type:
  17 um Microbolometer FPA
• Zoom:
  Continuous E-Zoom 1.0x - 4.0x
• Pan Coverage:
  Continuous 360°
• Tilt Coverage:
  100°, -90°
• Video Output:
  Composite Analog Video Output (SD) NTSC or PAL, IP Video
• Video Frame Rate:
  9 fps
• Power Requirements:
  25.5 W (max), 9 to 32 VDC
• Operating Temperature:
  -4 to 140°F
• Storage Temperature:
  -40 to 185°F
• Encapsulation:
  IP 66
• EMI / Salt Mist / Vibration:
  IEC 60945
• Wind:
  115 mph
• Range Performance:
  6ft x 1.5ft Object: Up to 0.8 mi 13ft x 5ft Object : Up to 1.8 mi

Product Codes

• Mfr Part No
  ULS-M640S
• SCHEDULE B CODE
  9999.99.9999
