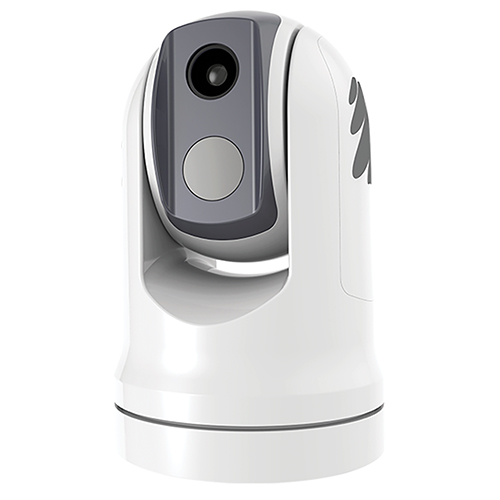

Ulysses Mini+ Compact Dual Payload Marine Thermal Camera

Ulysses Mini+ Compact Dual Payload Marine Thermal Camera

OMNISENSE

Call For Pricing
In stock
EDMO # ULS-N640W
MFR Part # ULS-N640W
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Ulysses Mini is an affordable, high-performance, gyro-stabilized marine thermal imaging system, featuring a day and night camera that delivers superior images in any lighting condition for demanding yacht masters and mariners.

Features

  • High-resolution 640x480 thermal camera
  • High-performance 4K capable, day and low-light CMOS camera
  • Smooth images, real-time awareness, and quick response
  • Gyro-stabilized for steady viewing in rolling seas
  • Wide display interfacing options
  • Advanced MFD/mobile app touch-screen control
  • Radar Slave and other advanced network functions
  • Low power consumption
  • Rugged/weatherproof construction
  • Easy installation

Specifications

  • Weight:
    ≤ 15.4 lb
  • Dimensions:
    12.34 x 7.56 in
  • Sensor Type:
    Thermal: 640 x 480 , 17 um uncooled microbolometer Color: 8.5m, 1/2.5 in Exmor R STARVIS CMOS
  • Field of View:
    Thermal: 18° x 12° Color: 35.4° x 20° (Wide), 9° x 5.2° (Tele)
  • Zoom:
    Thermal: Continuous electronic zoom to 4x Color: HyperZoom 8x / E-zoom 6x
  • Pan Coverage:
    Continuous 360°
  • Tilt Coverage:
    100°, -90°
  • Gyro Stabilization:
    Yes
  • Video Output:
    NSTC or PAL, HDMI, IP video
  • Video Frame Rate:
    9 fps
  • Power Consumption:
    25 W max
  • Power Requirements:
    PoE
  • Operating Temperature:
    -13 to 131°F
  • Storage Temperature:
    -22 to 158°F
  • Encapsulation:
    IP 66
  • EMI / Salt Mist / Vibration:
    IEC 60945
  • Wind:
    115 mph / 100 kn
  • Lightning Protection:
    Standard
  • Range Performance:
    6ft x 1.5ft Object: Up to 1.1 mi 13ft x 5ft Object: Up to 2.5 mi
