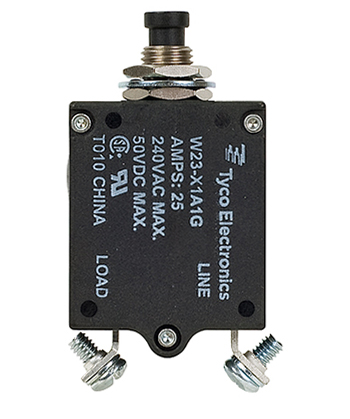

W23 Series Thermal Circuit Breaker | 25 Amp Rating, Push/Pull Actuator

TE CONNECTIVITY

Call For Pricing

In stock

EDMO # W23-25

MFR Part # 6-1393246-9

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The W23 series are panel-mount thermal circuit breakers with a push/pull actuator and series trip function. The thermal type breakers have an interrupt capacity of 1000 amps at 50 VDC or 120 VAC. The button color has black with white amp rate mark and white trip band.

Includes hardware.

Features

The W23-X1A1G-25 circuit breaker (EDMO# W23-25) is rated for 25 amps.
Single Pole
Series trip
Push/pull actuator
0.5 amp to 50 amp ratings may be used as on/off switch
Cannot be reset against overload
Visible trip indicator band
Screw termination
Trip-free operation
Potter & Brumfield

Also Purchased

Specifications

Weight:

Less than 2 oz. (57g)
Endurance Cycling:

More than 6,000 cycles at 100% of rating, or 10,000 mechanical cycles
Dielectric Strength:

Over 1,500 volts RMS
Terminals:

#8-32 screw terminals
Current Rating:

25 amps
Mounting:

Panel mount
Voltage Rating :

AC 240V DC 50V
Number of Poles:

1
