1324-1QC DC Portable Aircraft Starting Unit | 24VDC, 1,300A Peak Output

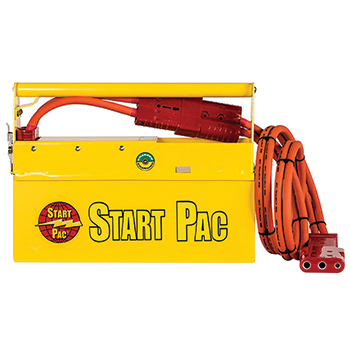

Start Pac Portable Starting Unit / Lead-Acid / 24VDC / 1300A Starting

START PAC

Call For Pricing
Available to order
EDMO # 1324-1QC
MFR Part # 1324-1 QC
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Start Pac DC portable aircraft starting unit provides superior starts for electically-started turbine or piston engines up to 500 horse power. aircraft and helicopters. The1324-1QC features seperate removable batteries that can be swapped in just 15 seconds. This allows makes using this GPU in the field or remote locations easier. Also, this GPU unit is capable of two or three start between charges. In addition, certain aircraft allows onboard recharging of this GPU unit without an AC power source — making this portable engine starting unit virtually maintenance-free.

Features

  • Compact, lightweight portable aircraft power supply
  • Portable enough to use as a carry-on Start-Pac whenever power is needed
  • No duty cycle for clean continuous power
  • All-in-one power supply with included universal smart float-type charger, power plug, and 7-foot aircraft cables
  • Integrated LED charge indicator
  • Cold resistant, valve regulated high amperage output lead acid batteries
  • Eliminates sulfating problems provides lower maintenance
  • Sealed, non-hazardous battery pack for use in any position
  • Recyclable, nontoxic and will not leak
  • Low VOC, powder-coated, aluminum case protects the unit from weather
  • Patented quick change design offers quick and simple battery replacements

Specifications

  • Weight:
    35 lb (15.9 kg)
  • Dimensions:
    15.5 x 4 x 11.75 in (39.4 x 10.2 x 29.8 cm)
  • Battery Type:
    lead acid
  • Voltage Output:
    24 VDC
  • Peak Current:
    1,300 A
  • Capacity:
    13 Ah @ 10A rate
  • Charger Type:
    built-in float-type 90 VAC – 240 VAC, 50/60 Hz
  • Charging Time:
    30 min. to 3 hr

Product Codes

  • Mfr Part No
    1324-1 qc
