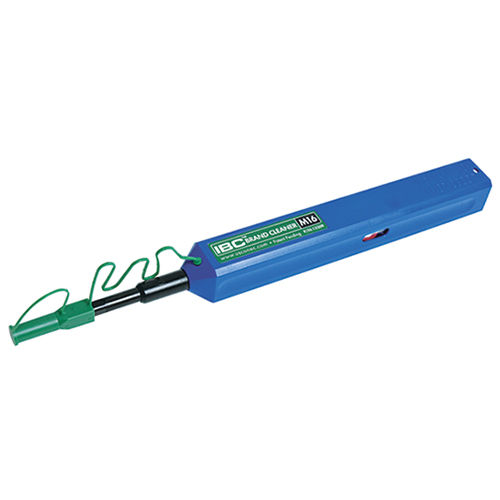

1.6 mm Harsh Environment Fiber Optic Cleaning Tool | M38999 Connector


IBC

Call For Pricing
In stock
EDMO # 13309
MFR Part # 13309
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Fiber optic pin and socket connector cleaners are mechanical cleaning tools designed to clean connectors residing in an adapter or faceplate and unmated connectors. These cleaning tools use a dry cleaning strand to gently sweep and lift away dust and residues from the connector end face. A simple pushing motion engages the tool followed by an audible click informs the user when the tool is fully engaged.

This variant (EDMO# 13309) cleans harsh environment 1.6 mm based connector systems. Works with connector type M38999.

Features

  • Simple push motion engages the tool
  • Audible click sound alerts the operator when full engaged
  • Lanyard attached dust cap prevents lost caps
  • Provides over 525 cleaning cycles per tool
  • Non-fraying cloth design
  • RoHS compliant
  • Effectively removes the following contaminates:
  • Arizona Road Dust (ISO 12103-1)
  • Skin oil residue
  • Salt water residue
  • Alcohol residue
  • Vegetable residue
  • Hand lotion
  • Distilled water residue
  • Graphite
  • T-shirt lint

Also Purchased

Specifications

  • Weight:
    38 g
  • Dimensions:
    177 x 17.5 x 17.5 mm
  • Style:
    Push Style Port Cleaner
  • Connector Type:
    M38999
  • Cleaning Function:
    In Situ or Unmated Cable Assembly
  • Use Type:
    Disposable
  • Ferrule Size:
    1.6 mm
  • Number of Cleans:
    Over 525
  • Compliant with EU/95/2002/EC Directive (RoHS)

Related Products

Product Codes

  • Mfr Part No
    13309
  • NSN
    6070-01-654-0346
