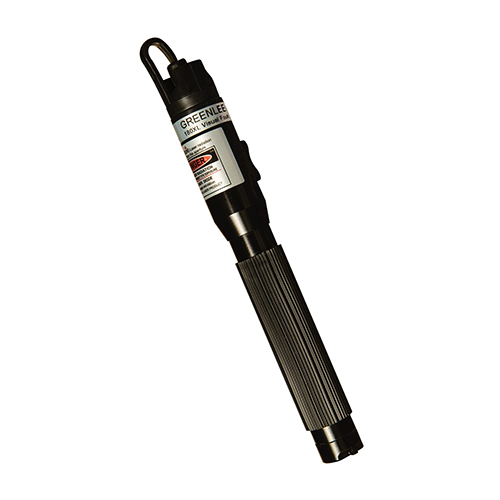

180XL Visual Fault Locator | 650mm


GREENLEE TEXTRON

Call For Pricing
Available to order
EDMO # 180XL
MFR Part # 52068671
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 180XL Visual Fault Locator quickly and easily locate high losses and faults in fiber optic cables.

Features

  • Up to 7km measurement range
  • Pulsed and CW mode of operation
  • Locates high losses and faults

Specifications

  • Weight:
    0.26 lb
  • Dimensions:
    7.08 x 0.91 in. diameter
  • Wavelength:
    650nm +/- 10nm
  • Emitter type:
    Fabry Perot
  • Output power:
    0dBm
  • Laser classification:
    Class 2
  • Range:
    7km
  • Modes of operation:
    CW and 2Hz modulation
  • Method of display operation:
    Red/green LED
  • Fiber type:
    Singlemode, multimode
  • Connector interface:
    2.5mm universal, optional 1.25mm adapter
  • Battery:
    2 x AA
  • Battery life:
    80 hours with 3.9Wh batteries
  • Operating temperature:
    -10ºC to 45ºC
  • Certification:
    CE, CDRH
