Insulation Resistance Tester | Hand-Crank Generator

MEGGER

Call For Pricing

Available to order

EDMO # 212159

MFR Part # 212159

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

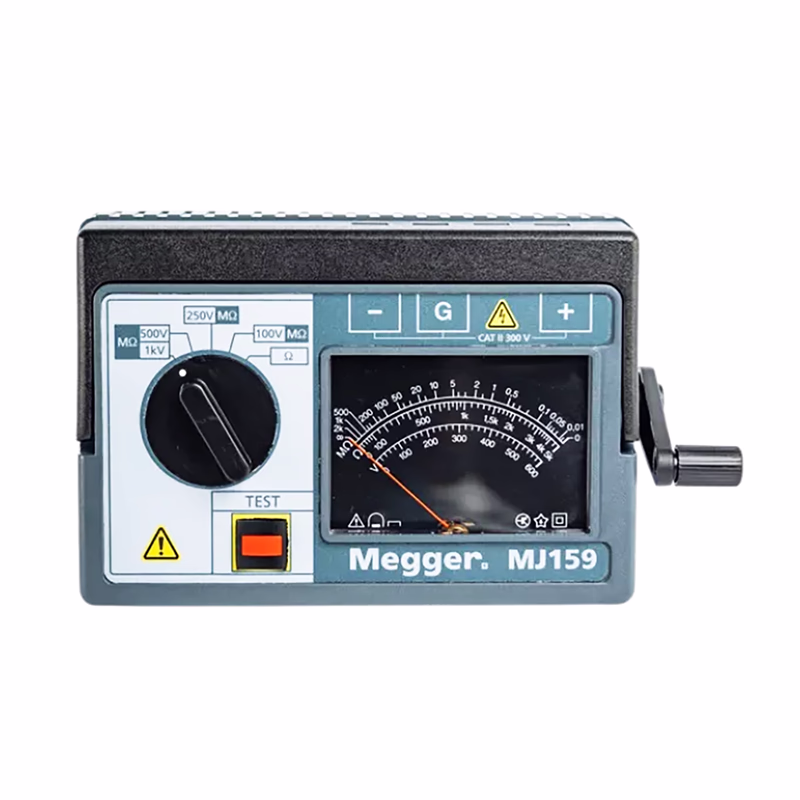

This insulation tester features excellent test voltage regulation, direct measurement readout, and an external guard terminal for eliminating surface leak current from the measurement. Ideal for general purpose testing, this tester is portable and self-contained and designed to give rapid and accurate measurements. The analog display has four selectable test voltages of 100, 250, 500, and 1,000 VDC for measuring insulation resistance up to 2,000 MΩ and has as ohm range to 5,000Ω.

This insulation tester (EDMO# 212159) features a hand-cranked power generator as its power source that is easy to turn even under full load situations. The accuracy remains unaffected by variations in generator cranking speed and test voltage is maintained at its rated value.

Features

No scale multipliers
Multiple test voltages for spot and step voltage testing
Guard terminal for eliminating surface leakage current

Specifications

Weight:

2.3 lb (1 kg)
Dimensions:

5.1 x 4.9 x 7 in (130 x 125 x 180 mm)
Temperature Range:

14°F to 133°F
Humidity Range:

70% RH @ 68°F (20°C) 60% RH @ 95°F (35°C) 50% RH @ 105°F (40°C) 95% RH @ max. @ 95°F (35°C), Storage
Insulation Range:

01Ω – 2,000Ω
Nominal Test Voltages:

100VDC, 250VDC, 500VDC, 1,000VDC
Accuracy:

250V, 500V, 1,000V, +30%, -0% max. 50V, 100V, +40%, -0% max.
Resistance Range:

0.1Ω – 5,000Ω
Power Supply:

low voltage brushless AC generator, cranking speed between 130 rpm & 170 rpm (212159)
Fuses:

500 mA (FF) 660V ceramic 50 kA HBC 1-1/4x1/4 in (32x6 mm) 7A (F) 440V ceramic 10 kA HBC 1-1/4x1/4 in (32x6 mm) 100 mA (F) HBC 20x5 mm (for line protection)
Safety:

meets requirements for double insulation to IEC 1010-1(1995), EN 61010(1995) to insulation category II, 300V phase to earth, 600V installation category I
