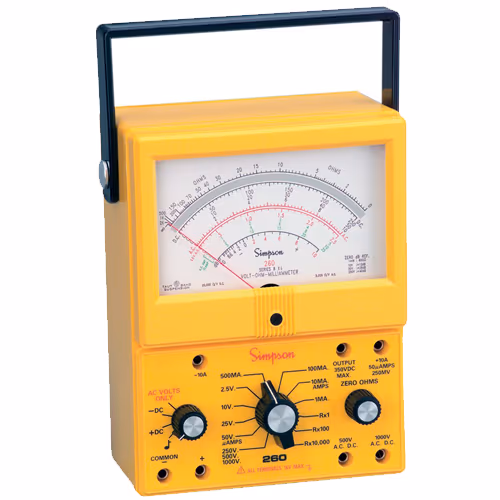

Simpson 260 Series 8XPI Analog Multimeter VOM

EDMO DISTRIBUTORS, INC

Call for pricing

Out of stock

EDMO # 260-8XPI

MFR Part # 12396

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Simpson 260 Series 8XPI is a rugged, compact, easy-to-use instrument equipped with mirrored dial to eliminate parallax. This instrument can be used to make accurate measurements of AC and DC voltage, direct current, resistance, decibels, and output voltage.

The 260-8XPI is provided with calibration certificate, batteries, manual and full-size test leads with threaded probe tips and screw-on alligator clips.

Features

UL 1244 listed
Zero RFI emission
Overload protection
Instant trend information for quick positive ""Yes/No"" checks
0-25V AC/DC range to increase low voltage resolution
Mirrored scale for parallax reduction and greater accuracy of reading
Resettable overload circuit protection available
Durable ABS plastic case provides impact resistance and drop protection
Bright yellow housing for enhanced visibility and safety awareness
Self-shielding taut-band meter movement provides added shock resistance
Large, tri-colored dial with mirrored scale to prevent parallax error
Over 20 measurement ranges for DC voltage and current, AC voltage and current, resistance

Specifications

Weight:

2.25 lb (1.02 kg)
Dimensions:

5.25 x 7 x 3.125 in (13.34 x 17.78 x cm)
DC Volts:

Ranges: 0-2.5V, 2.5-10V, 10-25V, 25-50V, 50-250V, 250-500V, 500-1,000V Sensitivity: 20,000 Ω/volt
DC Millivolts:

Range: 0-250mV Sensitivity: 20,000 Ω/volt
AC Volts:

Ranges: 0-2.5V, 2.5-10V, 10-25V, 25-50V, 50-250V, 250-500V, 500-1,000V Sensitive: 5,000 Ω/volt
Output Voltage (AC):

Ranges: 0-2.5V, 2.5-10V, 10-25V, 25-50V, 50-250V (limited to 350 VDC)
DC Microamperes:

Range: 0-50µA Voltage Drop: 250 mV
DC Milliamperes:

Ranges: 0-1mA, 1-10mA, 10-100mA, 100-500mA Voltage Drop: 250mV, 255mV, 300mV, 500mA (appox.) DC Amperes: Ranges: 0-10A Voltage Drop: 255mV (approx.)
Decibels:

Ranges: -20 to 10dB, -8 to 22dB, 0 to 30dB, 6 to 36dB, 20 to 50dB Reference Level: with zero dB power level equal to 1 mW across a 600Ω line
Batteries:

Voltage: 1.5V, 9V NEDA No.: 13F, 1604A
Test Leads:

1 red, 1 black (each 48-inch long)
