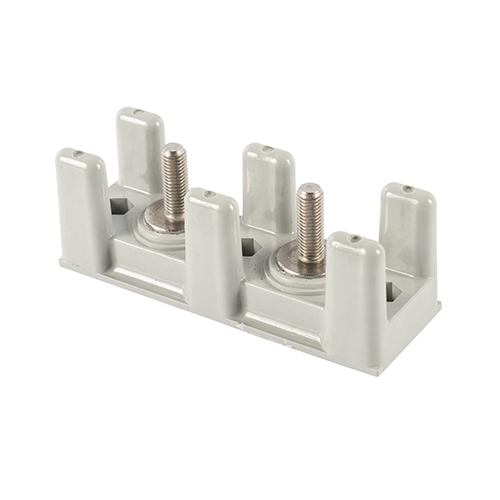

MS27212-3 Terminal Block | 2 studs

MS27212-3 Terminal Block | 2 studs

EDMO DISTRIBUTORS, INC

Call For Pricing
In stock
EDMO # 27212-3-2
MFR Part # MS27212-3-2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.


This terminal block (EDMO# 27212-3-2) has two mounting studs with 1/4-inch x 28UNF-2A/8 thread size.

Features

  • Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
  • 425°F to 500°F maximum operating temperature
  • Compatible with MS180029 terminal block covers and MS25226 bus bars

Specifications

  • Number of Studs:
    2
  • Stud Spacing:
    1.5 in
  • Stud Thread Size/Max:
    1/4 in x 28UNF-2A/8

Related Products

Product Codes

  • Mfr Part No
    MS27212-3-2
  • MIL SPEC
    MS27212-3-2
  • ECCN
    EAR99
  • MIL SPEC
    MS27212-3-2
  • SCHEDULE B CODE
    8536.69.4030
