MS27212-4 Terminal Block | 2 studs
EDMO DISTRIBUTORS, INC
EDMO#: 27212-4-2
MFR#: MS27212-4-2
Description
Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.

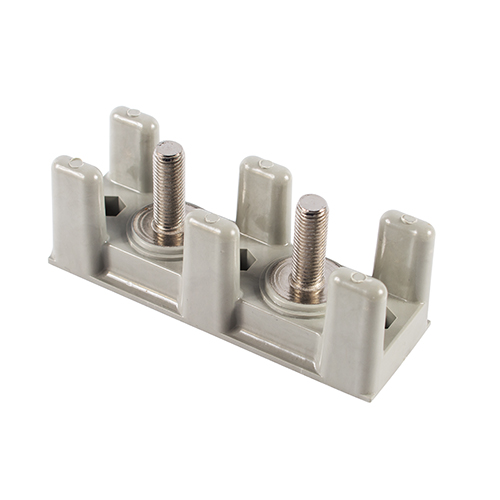

This terminal block (EDMO# 27212-4-2) has two mounting studs with 5/16-inch 24UNF-2A thread size.
Features
- Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
- 425°F to 500°F maximum operating temperature
- Compatible with MS180029 terminal block covers and MS25226 bus bars
Specifications
Number of Studs:
2
Stud Spacing:
1-1/2 in
Stud Thread Size/Max:
5/16-inch 24UNF-2A
Product Codes
Mfr Part No :
MS27212-4-2
MIL SPEC :
MS27212-4-2
ECCN :
EAR99
MIL SPEC :
MS27212-4-2
SCHEDULE B CODE :
8536.69.4030
