Ring Terminal | Non-Insulated, 3/0 AWG Wire Size, 5/16-inch Stud Size

                                         data-sf-ec-immutable=

THOMAS & BETTS

EDMO#: 321874

MFR#: MS20659-155 (321874)

Call for Pricing

No Stock

Description

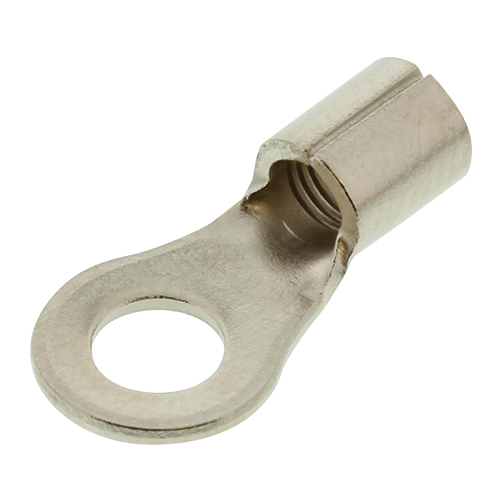

This non-insulated, large tubular ring terminal (EDMO# 321874) is used for wire termination of 3/0 AWG copper conductors, and has a 5/16-inch stud size.

Features

  • Deep internal serrations maximize contact with wire to help ensure high pull-out values and low electrical resistance
  • Long, chamfered barrel design helps eliminate wire hang-ups and maximizes crimp area
  • Constructed of electrolytic copper with electro-tin plating for high conductivity
  • Stamped from seamless copper tubing to help eliminate seam splitting
  • Complete wire and stud size identification on tongue
  • Electrolytic copper with electro-tin plating

Specifications

Wire Size:
3/0 AWG

Stud Size:
5/16 in

Strip Length:
55/64 in

Length:
2.455 in

Width:
1.01 in (min), 1.053 in (max)

Product Codes

Mfr Part No :

MS20659-155 (321874)

SCHEDULE B CODE :

8536.90.4000
