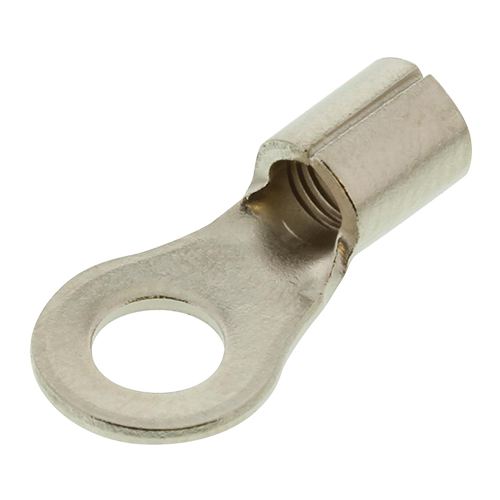

SOLISTRAND STRATO-THERM Ring Terminal | 12-10 AWG, #10 Stud Size

Product Description

The STRATO-THERM terminals, splices, and spare wire caps are used for high temperature applications. There are two types of these terminals, splices, and spare wire caps. One type is insulated, which consist of PIDG (pre-insulated diamond grip) ring tongue terminals, splices, and spare wire caps insulated with polytetrafluoroethylene (PTFE), post-insulated, or pre-insulated ; and the other type is uninsulated, which consist of DIAMOND GRIP (insulation support) ring tongue terminals, spade tongue terminals, and splices with SOLISTRAND (non-insulation support). The uninsulated options are available in heat resistant and high temperature. The terminals, splices, and spare wire caps accept solid or stranded wire for single applications.

These SOLISTRAND STRATO-THERM ring terminals (EDMO# 323062) is a non-insulated terminal that accepts 12-10 AWG wire and has a #10 stud size.

Specifications

• Weight:
  1.43 g
• Wire Size:
  12-10 AWG
• Stud Size:
  #10
• Tongue Thickness:
  0.031 in (0.79 mm)
• Product Length:
  0.765 in (19.43 mm)
• Barrel Inside Diameter:
  0.129 in (3.28 mm)
• Terminal Insulation:
  Non-insulated
• Wire Insulation Support:
  Without
• Body Material:
  Copper
• Body Plating:
  Nickel

Product Codes

• Mfr Part No
  323165
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
