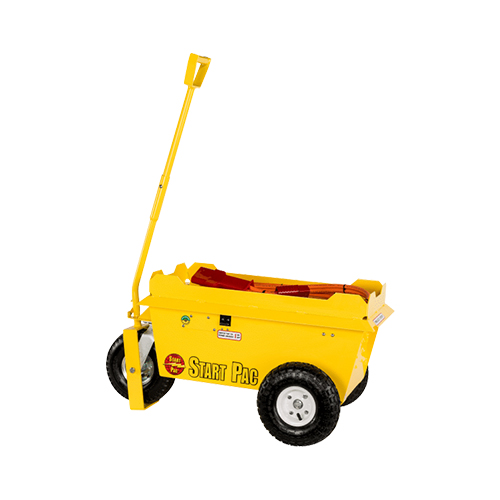

3326 SPEC Mobile 26V DC Aircraft Starting Unit

START PAC

Call For Pricing

Available to order

EDMO # 3326 SPEC

MFR Part # 3326 SPECIAL

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The START PAC GPU Model 3326 Special is designed to perform repeated superior starting functions for voltage sensitive turbine engines. Indeed, it will start any turbine or piston engine. It is rated at 2800 peak starting amps and is a full 26 Volt battery pack (27.6 volts at rest).

Due to the extra starting power provided by the 26V batteries, turbine engines will experience faster and cooler engine start than most ship’s aircraft batteries (the turbine is spooled to more revolutions per second before fuel is injected). Thus, turbine life will be extended because there is less stress on the starter and other engine components. This will preserve the aircraft’s costly batteries and help lower operating costs. Your airborne, on-board battery can then be saved for emergency use only.

As a START PAC secures all your engine starts, this unit will ensure that you have no downtime. Its large battery capacity will allow extended usage time when no AC power source is available. Additionally, the unit can be configured for 110 Volt or 220 Volt AC input.

The 3326 Special is coated in an environmentally responsible, low VOC powder coating, which protects it from wear, tear and extreme weather conditions. Additionally, an all-weather cover is also available as an option to protect this unit further from inclement weather and to gain the maximum performance and product life.

Features

Designed for all aircraft including voltage sensitive aircraft that cannot accept a true 28V
battery pack
Powerful mobile unit
Complete all-in-one unit is supplied with built-in universal smart float type chargers for faster
recharge, power plug and 10ft/3m aircraft cables
Integrated LED charge indicator
Cold resistant, valve regulated high amperage output lead acid batteries
Powerful, sealed cells non-hazardous battery pack for repeated engine starts at home base
Non toxic, non spillable and recyclable batteries, maintenance free
Resistant aluminum case with environment friendly, low VOC durable powder coat finish
Easy to handle, built for heavy duty usage
