PIDG #6 Nylon Ring Terminal | 20 AWG, Red w/red stripe

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

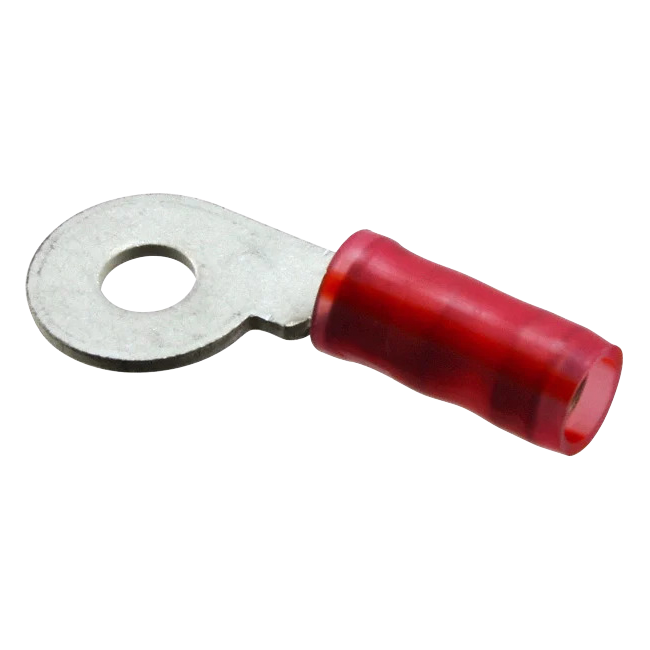

This ring terminal (EDMO# 52284-2) fits #6 studs, has red insolation with a red stripe, and used for 20 AWG wire.

Specifications

• Length:
  0.946 in
• Color:
  red w/ red stripe
• Stud/Tab Size:
  #6
• Wire Gauge:
  20 AWG
• Terminal Type:
  ring
• Contact Material:
  tin-plated copper
• Insulation:
  Nylon
• Mounting Angle:
  straight
• Mounting Style:
  cable mount / free-hanging
• Voltage Rating:
  300 VAC

Product Codes

• CSA
  LR7189
• UL
  YES

Documentation

• 52284-2_ENG_CD_52284_G1.pdf
