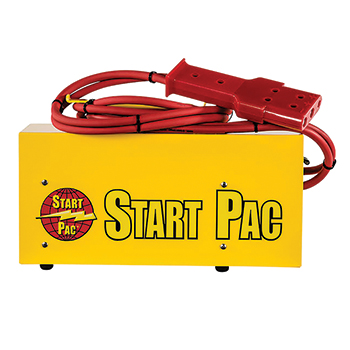

53105 Start Pac Aircraft Power Supply | 28.5VDC Output, 105A Current, 220V Input

Product Description

The Start Pac model 53105 is designed to power up 24-volt aircraft systems and provides a continuous current up to 105-amps. The 28.5 volt output is designed to simulate the aircraft's power when operating on its own.

Start Pac aircraft power supplies have been specifically designed for avionics maintenance to power up various functions such as inverters, avionics, and GPS programming/ equipment. Technicians can preform aircraft maintenance without using the aircraft's onboard battery thus preventing unnecessary wear and conserving aircraft power for startup purposes. The low VOC powder coating protects the Start Pac from wear and weather conditions.

This Start Pac aircraft power supply (EDMO# 53105) operations on 220-volt AC power, has a 105A current output, and includes an 8ft cable.

Specifications

• Weight:
  12 lb (5.4 kg)
• Dimensions:
  16 x 4-3/8 x 5-1/4 in (40 x 11.5 x 13.3 cm)
• Continuous Current Output:
  105A, max.
• DC Voltage Output:
  28.5 VDC
• AC Voltage Input:
  180 VAC — 240 VAC
• AC Current Input:
  14A @ 220 VAC, at maximum DC power output
• Phase:
  Single
• Forced Air-Cooling:
  Yes
• Circuit Protection:
  Over-current, over-voltage, over-temperature

Product Codes

• Mfr Part No
  53105M
• ECCN
  5A991
• SCHEDULE B CODE
  8504.40.9580
