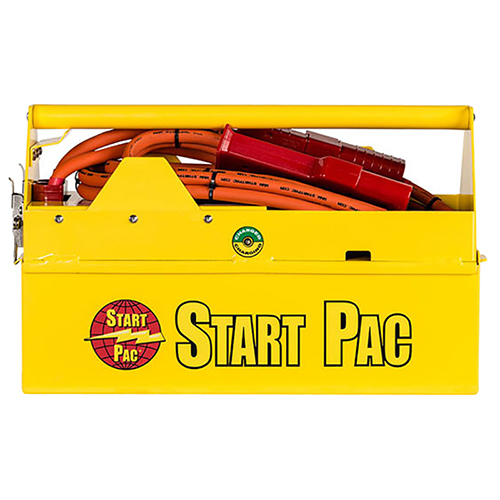

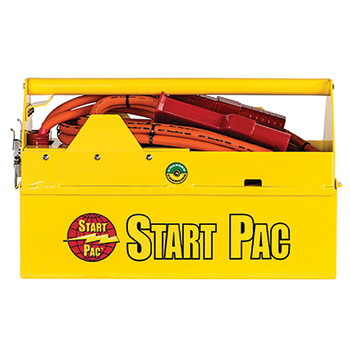

Mobile Aircraft Starting Unit | 28VDC Output

START PAC/110/220V/2300AMP

START PAC

EDMO#: 6028QC

MFR#: 6028 QC

Call for Pricing

No Stock

Also Purchased

Description

Start Pac's mobile starting unit provides fast engine starting for both turbine and piston aircraft engines. This unit includes built-in charger, power plugs and cables. It supplies a 28 VDC current for starting the largest electrically started turbine or piston engines – including the Garrent TPE331.

Start Pac patented technology provides faster and cooler engine starts than most manufacture aircraft batteries which extends engine life and lowers operating costs. Quick-change batteries can be changed in the field in less then a minute without requiring the use of any tools. In addition, certain aircraft will allow onboard recharging of a GPU unit without an AC power source — making this portable engine starting unit virtually maintenance-free.


This mobile aircraft engine starting unit (EDMO# 6028QC) provides a 28 VDC output, 2,300 peak current amps, and built-in float-type charger.

Features

  • Compact & Lightweight
  • Portable enough to use as a carry-on Start-Pac whenever power is needed
  • All-in-one power supply with included universal smart float-type charger, power plug, and 7-foot aircraft cables
  • Integrated LED charge indicator
  • Cold resistant, valve regulated high amperage output lead acid batteries
  • Eliminates sulfating problems provides lower maintenance
  • Sealed, non-hazardous battery pack for use in any position
  • Recyclable, nontoxic and will not leak
  • Low VOC, powder-coated, aluminum case protects the unit from weather
  • Patented quick change design offers quick and simple battery replacements

Specifications

Weight:
77 lb (35 kg)

Dimensions:
19.2 x 7.5 x 11.5 in ( 48.8 x 19 x 29.2 cm)

Battery Type:
lead acid

Voltage:
28 VDC

Peak Current:
2,300 amp

Capacity:
28 Ah @ 10 amp rate

Charger Type:
built-in float type, 90–240 VAC (50/60 Hz)

Charging Time:
30 min. to 4 hr

Product Codes

Mfr Part No :

6028 QC

ECCN :

5A991

SCHEDULE B CODE :

8504.40.9580
