EMI/RFI Shielded Cable Clamp | #5 Shell Size, 50/78-position

Product Description

EMI/RFI shielded cable clamps provide insulation for jacketed cable terminations to HDE or HDP receptacles or plugs. These cable clamps allow cables to be fully prepared and terminated to the connector before the shield is installed — simplifying the installation process.

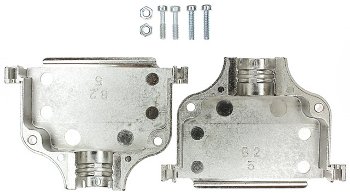

This shield cable clamp (EDMO# 5745175-4) has a #5 shell size with a 50/78-position connector and fits a maximum cable cable diameter 13.34 mm.

Specifications

• Dimensions:
  2.644 x 1.92 x 0.9 in (67.16 x 48.77 x 22.86 mm)
• Cable Diameter:
  13.34 mm
• Cable Entry Angle:
  straight
• Connector Type:
  D-Sub Backshells
• Number of Cable Entries:
  1
• Number of Positions:
  50-position, 78-position
• Shell Material:
  Zinc die cast
• Shell Plating:
  bright nickel-plated copper
• Shell Size:
  5(D)
• Shielding:
  EMI/RFI shielded

Product Codes

• Mfr Part No
  5745175-4
• MIL SPEC
  MIL-C-24308
• CSA
  FILE NO.1088108, LR:7189-207
• MIL SPEC
  MIL-C-24308
• UL
  E81956
