Tasklight 600 LED Cockpit Maplight | Gooseneck, White/Blue, 12V-24V, Panel Mount


OPLITE

Call For Pricing
Available to order
EDMO # 600-GN1-WB
MFR Part # TASK600-GN-1-W/B
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Tasklight 600 maplight installs easily into the panel and features a built-in dimmer switch and on/off switch. This maplight is available in a single color mode or dual color mode: all red, all white, all blue, or all green; as well as red & white, blue & white, or green & white. These task lights are manufactured and tested to ISO 9001:2008 and AS9001C for quality and traceability.

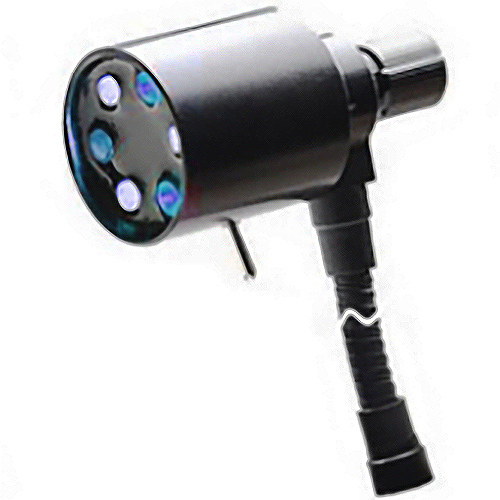

This Tasklight 600 (EDMO# 600-GN1-WB) has a white and blue color, a six-inch gooseneck shaft, and a lamp head diameter of 1.25 inch.

Features

  • Built-in dimmer & On/Off switch
  • Compatible with 12-volt and 24-volt systems
  • Machined from high quality CNC machined, 6061T6 aluminum
  • Black anodized
  • Dual color models: red & white, blue & white, green & white
  • Single color models: red, white, blue, and Green
  • Available in either thru panel mount or a six-inch gooseneck

Specifications

  • Gooseneck Length:
    6.00 in
  • Gooseneck Bend Diameter:
    1.75 in, min.
  • Lamp Head:
    1.25 x 2.40 in
  • Thread:
    5/16-24 x 0.25 in
  • Color:
    white & blue
  • Input Voltage:
    12 - 24 volt
  • Mounting Hole:
    15/32 in thru hole
  • Approvals:
    engineered in adherence to AS9100 certification

Related Products

Product Codes

  • Mfr Part No
    TASK600-GN-1-W/B
