Map Light 6 FAA-PMA Cessna Certified LED Maplight | White/Green, 12V, Panel Mount
OPLITE
EDMO#: MAP6-W/G12
MFR#: MAP6-W/G12
Description
The MAP 6 series panel mountable LED maplight is FAA-PMA certified for use in Cessna aircraft and features six LED lamp with a 20,000 hour life. This map light is available several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. It is easy to install and is fully-adjustable in two directions. Also, the MAP 6 maplight is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.

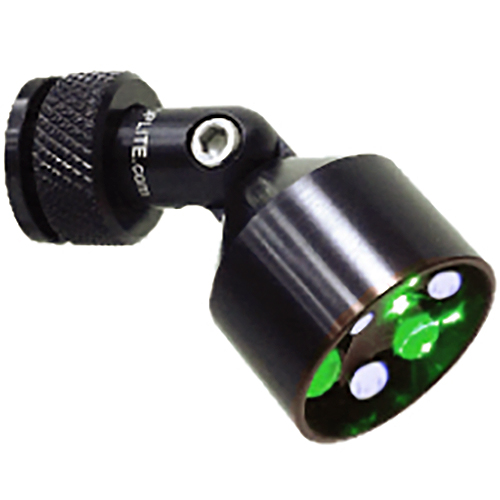

This MAP6 series (EDMO# MAP6-W/G12) is Cessna certified, features white & green lighting, operates on a 12-volt power supply, and has a lamp head diameter of 1.00 inch.
Features
- 20,000 hour LED lamp life
- Fully adjustable in multiple directions with its gooseneck shaft
- Surface mountable
- MIL-SPEC Anodized construction
- Precision CNC machined
- Compatible with all dimming systems
- Available in four color: green, red, blue, or white
Specifications
Installed Height:
2.125 in (at 90° position)
Lamp Diameter:
1.00 in
Thread:
15/32-32 x 0.45 in
Color:
white/green
Input Voltage:
12 volt
Mounting Hole:
15/32 in thru hole
Approvals:
FAA-PMA for Cessna aircraft
Product Codes
Mfr Part No :
MAP6-W/G12
