4-LED Aircraft Map Light | Green, 12V, 6" Gooseneck Shaft

Product Description

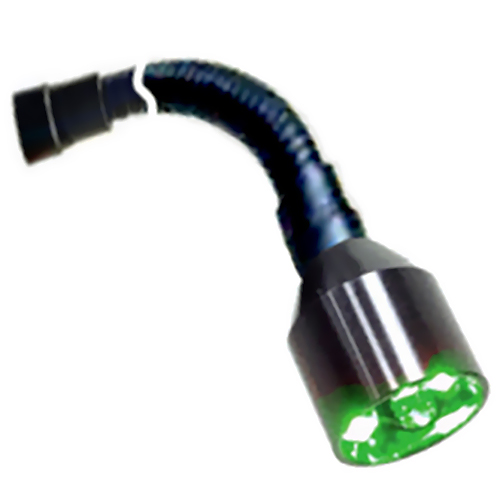

The GN4-GNG12 LED map light features a four LED bulbs mounted to a six-inch, flexible gooseneck to optimizing the lamps position during use. This aviation light has a rugged construction for use in aviation in certified aircraft as well as other applications.

This flexible gooseneck map light (EDMO# GN4-G12) has four, green LED lamps, operates on 12-volt input power source, and has a lamp head diameter of 0.80 inch.

Specifications

• Installed Height:
  7.00 in
• Lamp Diameter:
  0.80 in in
• Thread:
  5/16-24 x 0.25 in
• Color
  : green
• Input Voltage:
  12V
• Mounting Hole
  : 5/16 in thru hole

Product Codes

• Mfr Part No
  GN4-G12

Documentation

• Oplite datasheet
