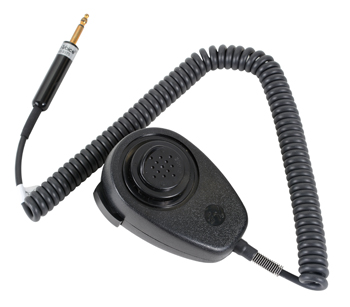

602T Dynamic Handheld Microphone | Button Hanger Mount, 6' Coil Cord, PJ068 Plug

Product Description

The 602T is a handheld dynamic microphone designed for highly articulate speech transmission under high ambient noise. The 602T uniquely meets the specialized requirements of airline, two-way radio and industrial applications. Transistorized with a pressure-gradient microphone utilizing three sound entrances for reduction of inter-facing ambient noise. This mic is unexcelled at discriminating between near and distant sounds for maximum ambient noise rejection.

Specifications

• Weight:
  325 g (11.4 oz)
• Dimensions:
  101.6 mm (4.0 in) length, less hanger, 72.1 mm (2.84 in) width 59.4 mm (2.34 in) depth
• Type:
  Amplified Dynamic Frequency Response: 300 - 5,000 Hz
• Impedance:
  Matches standard aircraft carbon circuitry Sensitivity: 400 mV ±3 dB for 114 dB re 20u pascals Current Drain: 12.3 mA at 8 Vdc (12-volt system) 25.0 mA at 16 Vdc (24-volt system)
• Case Material:
  Black ABS Certification: FAA TSO C58a, Category B

Product Codes

• Mfr Part No
  602-3375
• ECCN
  7A994
• PROAPP
  PT4047CE
• SCHEDULE B CODE
  8518.10.0000
• TSO
  C58a

Documentation

• 602T Technical Data Sheet
