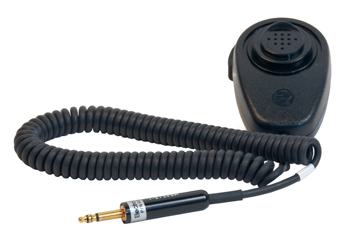

602T DYNAMIC AVIATION MICROPHONE - Hook loop hanger mount, 6' coil cord, PJ068 plug

602T DYNAMIC AVIATION MICROPHONE - Hook loop hanger mount, 6' coil cord, PJ068 plug

TELEX COMMUNICATIONS (EVI A)

EDMO#: 602-3376

MFR#: 602-3376

Description

The 602T is a handheld dynamic microphone designed for highly articulate speech transmission under high ambient noise. The 602T uniquely meets the specialized requirements of airline, two-way radio and industrial applications. Transistorized with a pressure-gradient microphone utilizing three sound entrances for reduction of inter-facing ambient noise. This mic is unexcelled at discriminating between near and distant sounds for maximum ambient noise rejection. The compact single stage transistor amplifier is specially stabilized and will operate uniformly from +550 C down -200 C.

Features

  • Highly reliable
  • EMI and RFI Protected
  • Greater Durability
  • Lightweight
  • Different connectors available
  • Three mounting options
  • Coiled cord
  • FAA TSO approved

Specifications

Type:
Amplified Dynamic

Frequency Response:
300 - 5,000 Hz

Impedance:
Matches standard aircraft carbon circuitry

Sensitivity:
400 mV ±3 dB for 114 dB re 20u pascals

Current Drain:
12.3 mA at 8 Vdc (12-volt system) 25.0 mA at 16 Vdc (24-volt system)

Case Material:
Black ABS

Dimensions:
101.6 mm (4.0 in) length, less hanger, 72.1 mm (2.84 in) width 59.4 mm (2.34 in) depth

Weight:
325 g (11.4 oz)Certification: FAA TSO C58a, Category B

Product Codes

Mfr Part No :

602-3376

ECCN :

7A994

SCHEDULE B CODE :

8518.10.0000

TSO :

C58a
