Avionics TDR Complete Kit with Telco Cable Option

AEA TECHNOLOGY

Call For Pricing

Available to order

EDMO # 6021-5042

MFR Part # 6021-5042

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

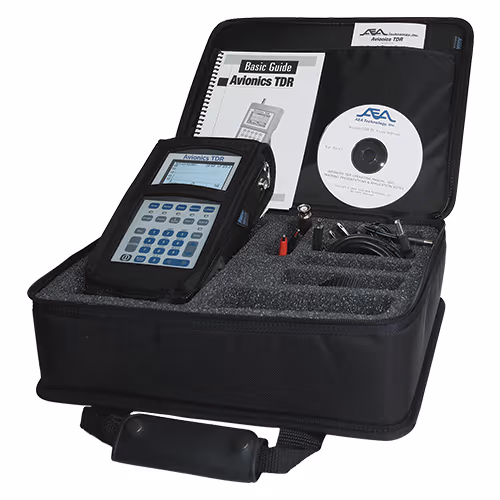

The Avionics TDR Kit is designed specifically for testing and fault location on aircraft wiring. The Step TDR is ideal for troubleshooting all types of coax, twisted pairs, single-wires in a harness, and aircraft power cables. Whether testing a new harness for complete connections or aging aircraft wiring this TDR will provide the most accurate trace of the cable’s impedance over length and detect even the smallest faults. Both models include: ETDR PC VisionTM software for trace documentation and new avionics training presentations. See reverse for complete details on each model.

This Avionics TDR Kit (EDMO# 6021-5042) includes a Telco Cable.

Features

Ranges: from 0-10ft (0-2m) to 20,000 ft (5Km)
No dead zone on any range setting
Range Zoom on Cursor
Impedance zoom using Z Scale
Cursor reading down to ± ½ inch (±8mm)
Cable List with up to 64 avionics cable types
BNC and RJ45 connectors standard
Setup Wizard – step-by-step start up assistance
Context sensitive help
Cell phone style alpha-numeric entry pad
Keypad LED indicators for active function
Cable toning – coax, pairs, or single-wires
Stores 32 traces with name, date & time
Rechargeable NiMH AA cells (included)
ETDR PC Vision software (included)
Kit Case is ATA rated and MIL-STD tested

Specifications

Weight:

2.2 lbs (1 kg)
Size:

8.5 x 4.3 x 2.25 in (216 x 109 x 57 mm)
Max Ranges:

20Kft (5Km) @ 0.99c or 14Kft (3300m) @ 0.66c
Min Range:

0–10 ft (0–2 m)
Range Scales:

11 selectable ranges
Range Accuracy:

< 0.2% ± 1 in (2.5 cm) + VF uncertainty
Z Accuracy:

< 2% (Cable Z = 45 to 125 Ω)
Resolution:

0.5 in on 10 ft range scale or 10 ft Zoom (8 mm on 2 m range scale or 2 m Zoom)
Dead Zone:

Zero on any range setting
Z Ranges:

20, 50, 100, 200, 500, & 1,000 Ω
Cursors:

2 independent and differential readings
Memory:

32 traces with 1920 data points (feet), 2000 data points (meters), name, date, and time.
Adv Features:

Test Lead Null, Micro Fault Locating, Setup Wizard - step-by-step setup instructions, Context Sensitive Help
Cable List:

64 Cable types with their Z and VF, PC upload or download custom cable lists
Tones:

900/1100Hz warble, 977.5, 850, 577Hz steady or pulsed & Pocket Toner enable
Display:

Quarter VGA transflective & backlit
Comms:

USB-2/serial
Internal Power:

8 AA NiMH cells (installed) ~7.3 hours continuous operation on single charge (reduced by backlight)
Alternate Cells:

8 AA alkaline, ~ 7 hours continuous operation (reduced by backlight)
External Power:

90-240VAC 50/60Hz adapter to 15VDC
Environmental:

Splash and dust resistant
Ruggedness:

MIL-STD 810G Transient Drop tested, 48 inches (122cm) to hard surface, 26 drops
