Avionics TDR Complete Kit | with Hard Case

AEA TECHNOLOGY

Call For Pricing

Available to order

EDMO # 6021-5154

MFR Part # 6021-5154

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Avionics TDR (EDMO# 6021-5154) troubleshoots OSP, drop, or twisted pair cables (CAT 2 to Cat 6A) and single wires in bundles or harnesses. It uses step technology to accurately locate and display wire faults and then stores, recalls, and uploads traces to the PC by name, date, and time. It also has MicroFault locating for finding small coax kinks and crushes that might affect service but are difficult to see on a normal TDR trace. Ideal for testing Coax, Twinax, Triax, Telco OSP, or LAN twisted pairs Cat 2 to Cat 6A. Equipped with a user-friendly interface and includes a Setup Wizard, Named Menu Keys, and Context-Sensitive help. Internal cable list holds 64 cable types, can be user edited, and modified lists can be uploaded or downloaded to a PC using ETDR PC Vision™ software.

Features

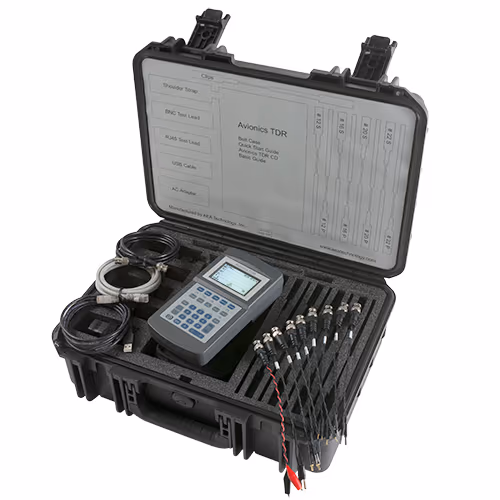

This Avionics TDR kit (EDMO# 6021-5154) includes:
TDR unit
Hard case
Connector test leads for pin and socket (sizes 12, 16, 20, and 22)
Coaxial cable with BNC connectors
BNC-to-alligator clips
RJ45 Cat 5 test lead, AC adapter/charger
USB cable
Quick start guide
Basic users guide
Calibration certificate with data
CD with operating manual
ETDR PC Vision software
Training presentation
Features:
EMI shielded interior protects against RF interference and emissions
Includes a dark grey ABS plastic case and enhanced keypad
Redesigned belt case with an accessories pouch and protection for connectors
Coax and twisted pair testing using same TDR (all types of coax, OSP, twisted pairs [CAT 2 to CAT 6A], and single wires in bundles or harnesses)
Accurate and clearer trace indication of faults with MicroFault locating for finding even small coax kinks
Has data transfer abilities: saves, uploads, and emails traces and can upload, download, and customize cable lists
Saved traces are also saved setups for recall
Shows reverse ingress or cable signal
TDR frequency does not interfere with cable signal
Isolate drop or pairs quickly using Tone function
Setup Wizard makes training interactive
The unit weighs only 2.2 lb and can be worn on a belt

Specifications

Weight:

2.2 lb (1 Kg) with batteries and belt case
Dimensions:

8.5 x 4.3 x 2.25 in (216 x 109 x 57 mm)
Range:

0 - 20,000 ft (5,000 m) @ VF = 0.999 c
Display Resolutions:

1 in (2.54 cm) 0 - 5,000 ft 5 ft 4 in (1.63 m) 5,000 - 10,000 ft or 0.1% of span distance with Accuracy of <0.2% + 1 in (2.54 cm) + VoP uncertainty
Measurement speed:

1-2 updates/second depending on range
Impedance Range:

1-1K Ohms with Resolution: 0.1 Ohms and Accuracy: <2% @ 40< Z <120
Impedance plotting scales:

0 - 20, 50, 100, 200, 500 and 1,000 Ohms
Impedance Formats:

Ohms
Output power:

0.4 volts peak-to-peak
Power requirements:

90 - 240 VAC, 50-60 Hz for AC operation or battery charging
Velocity of Propagation:

0.20 - 0.99c with Resolution 0.003c
Dead Zone:

None on any range
Cursors:

Two with differential readings
Memory:

32 traces with name, date and time
Display:

Qtr VGA, Backlit LCD 279 x 156 pixels
Communications:

USB-2/Serial
Internal Power:

8xAA Alkaline, NiMH or NiCd batteries
External Power:

15 VDC @ 800 mA
Environmental:

Splash and dust resistant
Drop Resistance:

MilStd 810F Transit Drop, 48 in (122 cm)
