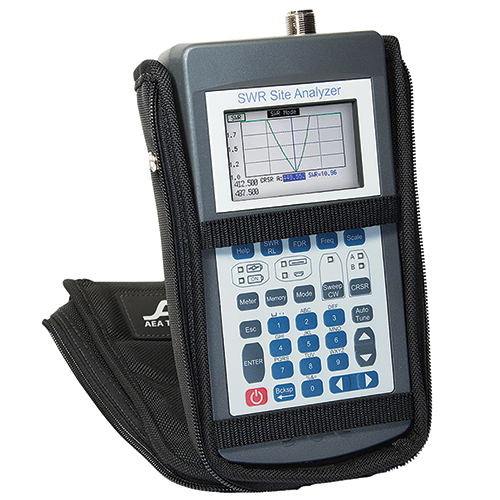

SWR Site Analyzer Kit

Product Description

The SWR Site Analyzer (EDMO# 6050-5050) measures VSWR, return loss, and frequency domain reflectometer (FDR) on a frequency range of 100 KHz to 1.4 GHz. It features a full color, backlit display with excellent readability — even in full daylight — and 50 memory slots allowing users to save and recall plots on the the device or upload to a PC using the included Site Analyzer PC Vision™ software.

The SWR site analyzer is designed with easy-to-use navigation menus and custom color settings for displaying measurement plots. The included NiMH batteries provides four continuous hours of operation. Also, the SWR Site Analyzer communicates with a PC via USB 2.0 with the included cable.

Specifications

• Weight:
  2.2 lb (1 Kg) with belt case and batteries
• Dimensions
  : 8.5 x 4.3 x 2.25 in (216 x 109 x 57 mm)
• Frequency Range:
  100 KHz to 1.4 GHz
• Tuning and Display Resolution:
  1 KHz
• Input Power Range:
  -100 dBm to 30 dBm
• Refresh Rate:
  2.5 Hz
• Frequency Display:
  250 points
• Measurement Speed:
  10 ms to 1 second
• FDR Range:
  35 to >10 Kft (10 to >3048m)
• FDR Measurements:
  DTF and end of cable
• FDR Accuracy:
  2% of scale
• Output Power:
  ~ 0 dBm @ 50Ω
• RF Connectors:
  N Type
• Power Requirements:
  13.8 - 20 VDC @ 800 mA, minium or 8xAA batteries (NiMH, Nicd or Alkaline)
• Kit Version includes:
• Specification
  Soft carrying case
• Specification
  DC vehicle recharge adapter
• Specification
  N to BNC adapter
• Specification
  Three-way load (open load & short)
• Specification
  Plus, standard accessories

Product Codes

• Mfr Part No
  6050-5050
• SCHEDULE B CODE
  9030.40.0000
