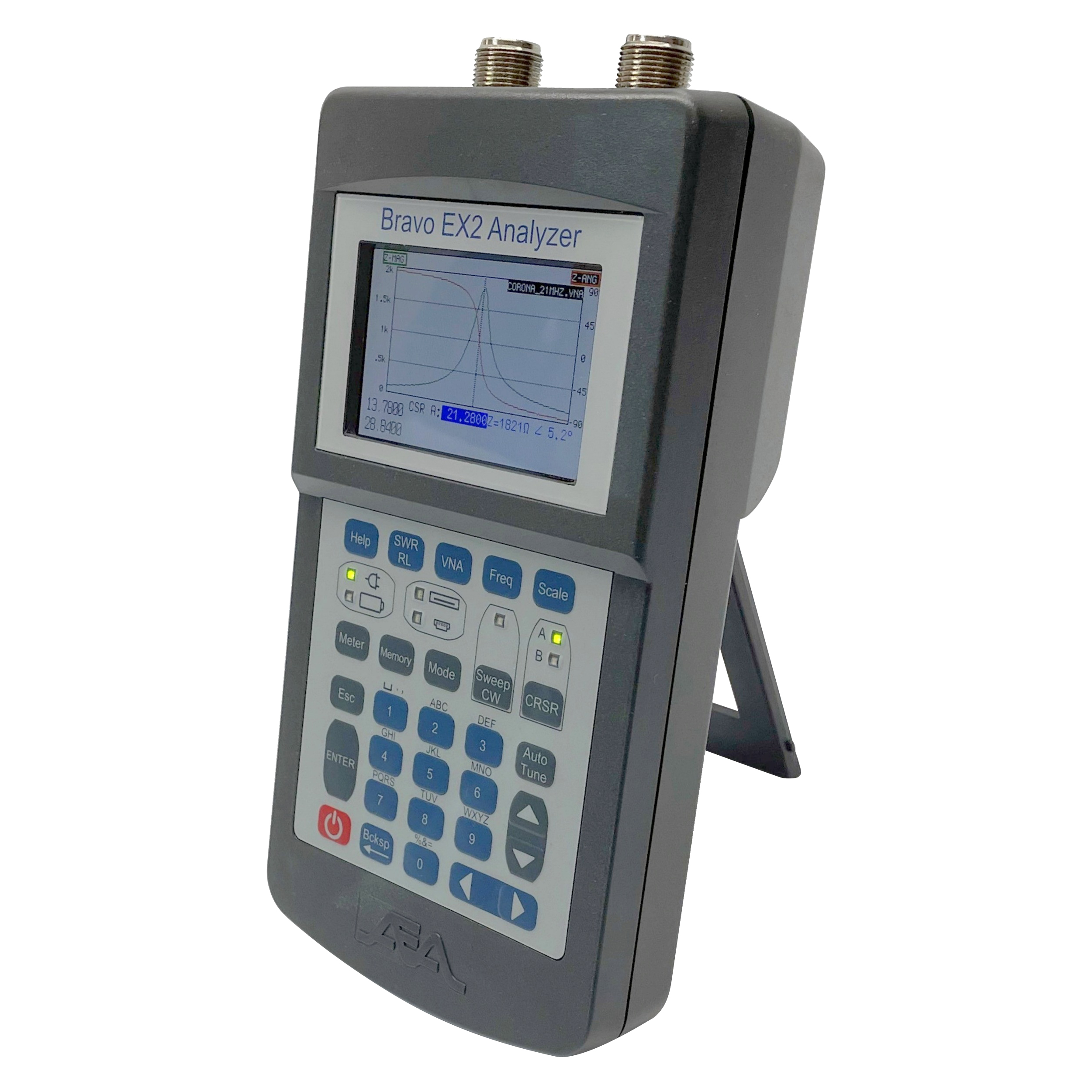

Bravo Ex2 Analyzer | Dual Port

AEA TECHNOLOGY

Call For Pricing

Available to order

EDMO # 6053-5000

MFR Part # 6053-5000

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Bravo Ex2 Analyzer is a network analyzer with a frequency range of 100 KHz to 525 MHz that accurately measures impedances from 0 to 2000 ohms, resistance, impedance angle, X, return loss, and SWR. The Bravo Ex2 can simultaneously provide graphical display for any two measurement parameters. The frequency sweep is plotted on the X-axis, and independent left and right Y-axis scales are user selectable. The Bravo’s portability makes it the ideal test instrument for field or lab use. Additionally, our Bravo products come with Site Analyzer PC Vision™ software. This application permits remote control operation of the Bravo Ex2 to upload test results to a PC or laptop, view the VNA or Smith Charts in full color, and store and print complete analyzer data. While the Bravo’s LCD can support displaying two parameters, PC Vision can display one or all the testing parameters at once. The Bravo Ex2 is fully rechargeable and includes “AA” NiMH batteries. This instrument will save time, reduce capital expenditures, and reduce costs typically associated with testing and tuning resonant devices and filters.

This Bravo Ex2 Analyzer (EDMO# 6053-5000) is a dual-port unit that includes the Bravo Ex2 Analyzer, N to BNC adapter, BNC terminators (short & 50 ohm), padded case, 6 ft USB cable, AC adapter, quick start guide, and CD with operating manual, training PPT, and Site Analyzer PC Vision™ application.

Features

Quarter VGA back-lit color display (user selectable color scheme) Colors can be customized for best viewing
One-button Auto-tune locates the coil's best SWR or Return loss
Large numeric Format readout in CW mode
Quickly shift between SWR, Return Loss and VNA functions
Has “Cable Null” option to eliminate test lead or feed line
Internal Memory can hold 100’s of plots and setups
Site Analyzer PC Vision™ application and USB-2 Cable included
Save, recall and upload test results to a PC
Economical Multi Function
Very fast response time in graphical display mode
Compact design makes it easy to carry on site
Improves reliability
Can be operated in remote control from a PC or laptop
Document Unit under test performance and tuning
Maintain servicing records for resonant devices and filters

Specifications

Weight:

2.2 lbs (1.0 kg)
Size:

8.5 x 4.3 x 2.25 in
Frequency Range:

100 KHz to 525 MHz
Tuning Resolution:

1 Hz (100 KHz – 150 MHz), 200 Hz > 150 MHz
Measurement Speed:

~ 5 ms/data point
Frequency Display Width:

0 to 51.6 MHz/100 data points/large numeric readouts 0 to 64 MHz/100 data points/large numeric readouts
Impedance Range:

0 to 2000 Ω
Impedance Scales:

0 to 10, 20, 50, 100, 200, 500, 1000, and 2000 Ω
Phase Angle Scales:

± 15 to ± 180 Degrees
Harmonic & Spurious:

Better than -15 dB below fundamental
Output Power:

~ -5 dBm @ 50 Ω
Power Requirements:

12–20 VDC @ 650 mA (min) or 8 AA Batteries
Antenna Connector:

N Connector
USB Interface:

2.0
Certifications:

CE EMC: EN/IEC 61326-1:2013/2020 Safety: EN/IEC 61010-1:2010 +A1:2016 + C1:2019
