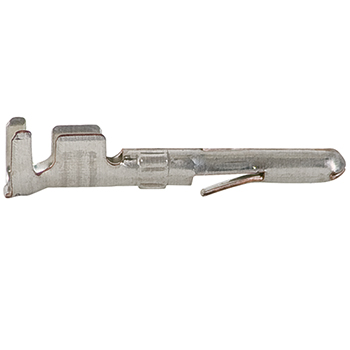

Commercial Mate-N-Lock Connector Pin | 24–18 AWG, Pre-Tinned, Phosphor Bronze

PIN/Male, 250V, MATE-N-LOK series. Phosphor Bronze material. For use with 24-18 gauge wire. ROHS compliant.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 60618-4
MFR Part # 60618-4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This Commercial Mate-N-Lock connector pin (EDMO# 60618-4) has a pre-tinned, phosphor bronze material, fits wire gauges from 24 AWG to 18 AWG, and mates with contact socket 60617-4.

Features

  • Pre-tinned, phosphor bronze material
  • Accepts 24 AWG to 18 AWG gauge wire

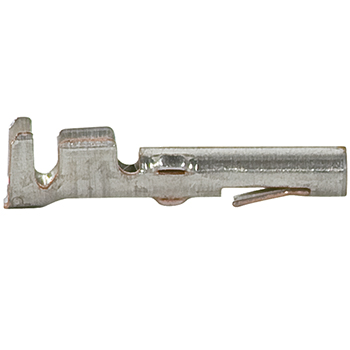

  • Mates with contact socket 60617-4
  • RoHS compliant

Also Purchased

Specifications

  • Length:
    0.805 in
  • Wire Gauge Range:
    24 AWG to 18 AWG
  • Insolation Diameter:
    0.100 in, max.
  • Contact Gender:
    Pin (male)
  • Contact Material:
    Pre-tinned, Phosphor Bronze
  • Current Rating:
    13 A
  • Voltage Rating:
    250 V
  • Product series:
    Mate-N-Lock

Related Products

Product Codes

  • Mfr Part No
    60618-4
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    E28476
