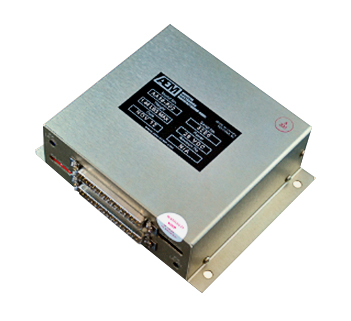

AA38-703 Local ICS Loop | 4 Place, Hi Z, TX PTT, Transmit, External Volume

Product Description

The AA38 Series Aircraft Intercom System Local ICS Loop provides intercom functions with operation in Live, VOX, or PTT modes. The units are bulkhead mounted containing all the circuitry required to support a wide variety of ICS Loop applications, particularly isolation/ICS amplifier use, where the output is required to be headset or line level. A switch-selectable NAT/Andrea allows connections to larger audio systems, and an auxiliary input allows for audio input from an audio panel or transceiver.

Version AA38-703 has functions for 4 users with low impedance headsets, individual TX PTT for each user, transmit function, and external ICS volume.

Specifications

• Weight: 1.60 lb
• Dimensions: 5.94 x 4.95 x 1.94 in.
• Mounting: Bulkhead mount with four 10-32 screws
• Material/finish: 5052-H32 brushed aluminum with conversion coating finish
• Connectors: Filtered male 37-pin D-subminiature connector with V5 locking tabs
• Temperature: -55ºC to 85ºC
• Altitude: 35,000 ft
• Input voltage: 24.8 to 30.3 VDC

Product Codes

• Mfr Part No
  AA38-703
• SCHEDULE B CODE
  8803.30.0010

Documentation

• AA38 Manual
