ADI-85 Instrument Test Panel

Product Description

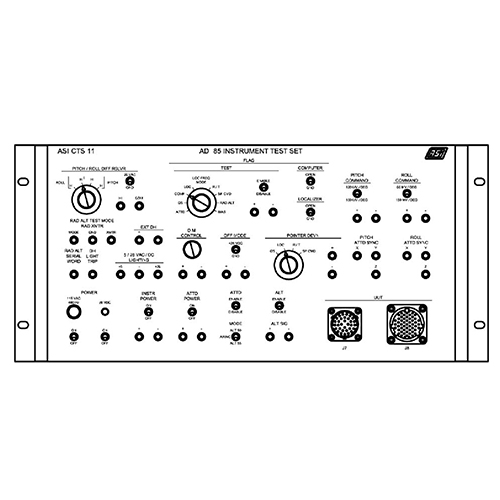

The ASI-CTS-11 Instrument Test Panel is used to test, repair and align the Collins ADI-85() Altitude Direct Indicator. The test panel provides a means of applying and and measuring at the rear connectors of the ADI-85() via switches and test points on the front panel. The ASI-CTS-11 is supplied with a UUT cable (ASI-11-1A) and a syncro source cable (ASI-11-1B). An optional 978-2S (ASI-167) or CSS-10 (ASI-165) syncro source is required for proper operation of the ASI-CTS-11 test panel.

Specifications

• Dimensions:
  8.75 x 19 x 6 in
• Power Requirements:
  28 VDC / 115 VAC 400 Hz

Product Codes

• Mfr Part No
  ASI-CTS-1A
• SCHEDULE B CODE
  8544.19.0000
