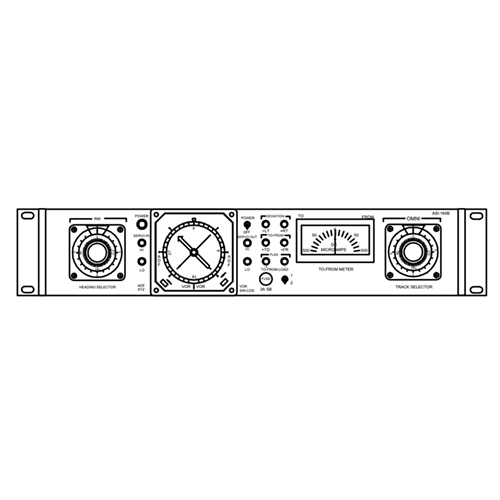

Deluxe Univerisal Heading and Track Selector

Product Description

The ASI-160B facilitates the calibration of both manual and automatic VOR converters and VOR section of RNAV units, and when used in conjunction with a control/interface panel will allow monitoring of the deviation and flag current current outputs. A to-from meter is built into the unit, and the OBS resolver is capable of both EZ (400 Hz) and ORZ (30 Hz) output.

The ASI-160B requires a user supplied RMI (332C-10 / KNI-581) for operation.

Specifications

• Dimensions:
  3.5 x 19.00 x 13.00 in
• Power:
  from UUT
• Equipment Supplied:
  DA-15S (mating connector) DB-25S (mating connector)
• Optional Equipment:
  ASI-160B/C to KNI-582 cable (ASI-16-B1) ASI-160B/C to RMI-36 cable (ASI-16-B2) ASI-160B/C to Linaire LV-5 cable (ASI-16-B3) 479V-3 Mating adapter cable (ASI-16-B4) ASI-160B/C to 977A-1 TB-2 cable (ASI-16-B5) ASI-160B/C to Linaire LV-6 cable (ASI-160B/B) Synchro/Rosolver/CT test panel (ASI-215)

Product Codes

• Mfr Part No
  ASI-160B
• ECCN
  7B994
• SCHEDULE B CODE
  8544.19.0000
