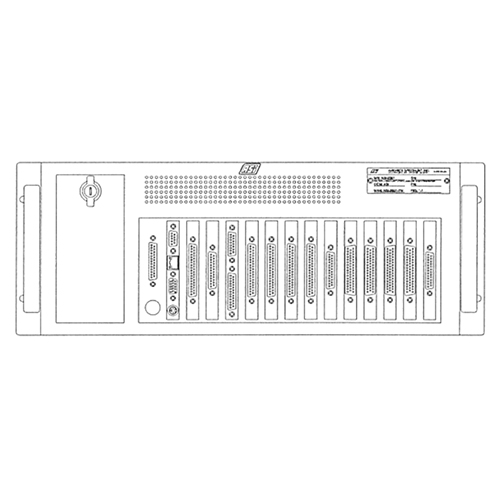

Pro Line Computer System | Computer Only

Product Description

The ASI-2001 Pro Line Computer System combines the functions of a PC computer, CTC-429 computer card, and the ASI-401 Pro Line/PC interface panel into a single rack mountable computer.

The ASI-CTC-429 and the ASI-ISA are internally mounted in ASI-2001 computer chassis and all connections are accessible from the front for easy interface to external test equipment (ASI-2000 or other Pro Line test fixtures manufacture to Colins Specifications). The ASI-2001 includes a standard keyboard and mouse and a monitor (ASI-20-10F or equivalent) must be purchased separately.

This Pro Line Computer System (EDMO# ASI-2001-3) includes the computer module only without the ASI-401-ISA & ASI-CTC-429.

Specifications

• Dimensions:
  7.00 x 19.00 x 18.00 in
• Power Requirements:
  115/230 VAC 47 Hz — 63 Hz
• Units Tested:
  Rockwell Collins Pro Line II / Pro Line 4 Avionics
• Supplied Equipment:
  ASI-401-ISA J2 to Pro Line J3 cable (ASI-10-401A) ASI-401-ISA J3 to Pro Line P3 cable (ASI-10-401B) ASI-401-ISA J7 to Pro Line P2 cable (ASI-10-401C) ASI-401-ISA J8 to ARINC 429 cable (ASI-10-401D) CTC-429 J10 to ASI-401-ISA J1 cable (ASI-20-10A) CTC-429 J12 to ASI-401-ISA J33 cable (ASI-20-10B) CTC-429 F14 to ASI-401-ISA J32 cable (ASI-20-10C)
• Optional Equipment:
  Pro Line Test System Mainframe (ASI-2000) Rack Mount Computer Monitor (LCD) (ASI-20-01F) CTC-429 serial loopback pod (ASI-402)

Product Codes

• Mfr Part No
  ASI-2001-3
• ECCN
  7B994
• SCHEDULE B CODE
  9030.89.0100
