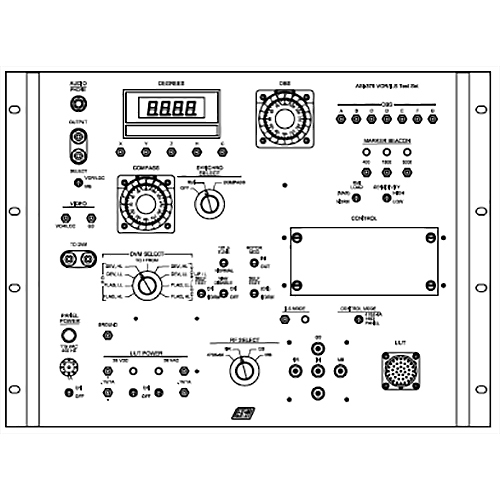

ASI-376-1 VOR/ILS Test Panel

Product Description

The ASI-376-1 ADF Test Panel provides testing and fault isolation of the Collins AN/ARN-144, AN/ARN-149(V), and VIR-130A/C VOR/ILS Receivers. The Test Panel acts as an interface and contains the ability to provide stimuli and measure data required when testing the VOR/ILS system. A user supplied control (313N-6C or equivalent) is required for complete testing of the Receiver.

Testing of 1553B equipped VOR/ILS Receivers require the optional 1553B Bus Adapter (ASI-37-6D) or the ASI-376-2 VOR/ILS Test Panel.

The ASI-376-1 includes the I/O Cable (ASI-37-6A), 4 RF Cables (ASI-37-6B1/2/3/4), and a Control Cable (ASI-37-6C).

Specifications

• Weight:
  24 lb
• Dimensions:
  14 x 19 x 16.5
• Power:
  115 VAC/400 Hz

Product Codes

• Mfr Part No
  ASI-376-1
• SCHEDULE B CODE
  8544190000
• SIN
  334515
