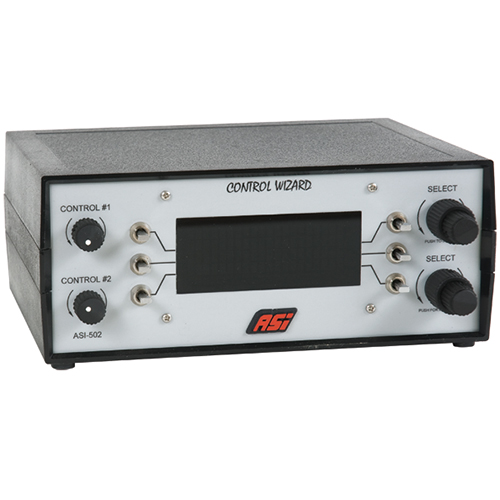

CONTROL WIZARD/Control head simulator and data bus analyzer

The ASI-502 Control Wizard emulates most major avionics control functions for testing requirements. The Control Wizard is capable of controlling ADF, HF/VHF COM, DME, NAV, Transponder, or any other system that requires ARINC 429 serial, CSDB serial, or Parallel tuning methods including BCD and 2x5 (8.33/25 kHz). The Control Wizard can also read and display ARINC 429 Control Data, Collins CSDB Control Data, and ARINC 579 VOR Bearing Data, which may eliminate the need for more expensive data bus readers or various test control heads. The Control Wizard comes pre-programmed with control functions required for general testing of avionics equipment. Optional custom control programming available upon request. Optional rear connector adapters are available which allow existing cables to plug directly to the ASI502 Control Wizard. This is useful in existing bench test harness and flight line use.

Standard Channeling formats:
