ADF/ILS/VOR/ Discrete Function Interface Unit

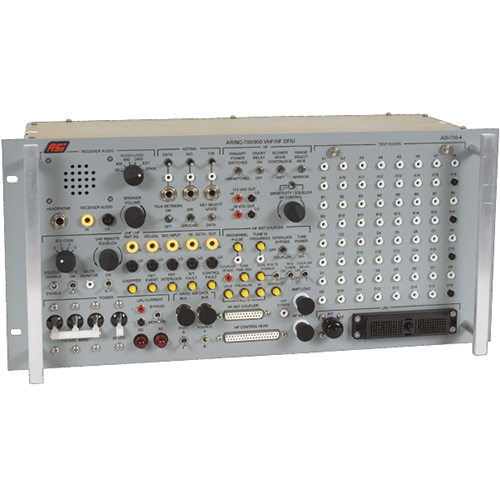

ADF/GLU/ILS/VOR DISCRETE FUNCTION INTERFACE UNIT

AVIONICS SPECIALIST

Call For Pricing

Available to order

EDMO # ASI-700-2

MFR Part # ASI-700-2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The ASI-700-2 discrete function interface unit is functionally equivalent the T1201 and is designed to test Honeywell (Bendix) and Rockwell Collins ARINC 700/900 series of ADF, ILS, MB, and VOR line replaceable units (LRU).

This test unit works in conjunction with an ARINC 429/629 data bus generator to provide the LRU with all voltages, discrete, control inputs and outputs required for ""by the book"" testing per manufacture maintenance manual. The the Honeywell LRU is done untilizing the optional test proceedures shown in the appendix of the LRU maintenance manual. The ASI-502 can be used as an ADF/ILS/VOR ARINC 429 control head simulator.

Specifications

Dimensions:

8.75 x 19.00 x 6.00 in
Power:

38 VDC/115 VAC, 400 Hz
Units Tested:

ADF-700, ILS-700A, ILS-720, ILS-900, VOR-700, VOR-700A, VOR-900, DFA-75A, RIA-35A, RVA-36A
Supplied Equipment:

AC mating connector DC mating connector
Optional Equipment:

ASI-700-2/-3/-4/ to T1200() cable (ASI-70-0XA) ADF-700 / ADF-900 / /DFA-75A cable (ADI-02A) Test point overlay: ADF-700 (ASI-70-02A1) Test point overlay: ADF-900 (ASI-70-02A2) Test point overlay: DFA-75A (ASI-70-02A3) ILS-700 / ILS-720 / ILS-900 / RIA-35A cable (ASI-70-02B) Test point overlay: ILS-700 / ILS-720 (ASI-70-02B1) Test point overlay: ILS-900 (ASI-70-02B2) Test point overlay: RIA-35A (ASI-70-02B3) VOR-700 / VOR-900 / RVA-36A cable (ASI-70-2C) Test point overlay: VOR-700 (ASI-70-02C1) Test point overlay: VOR-900 (ASI-70-02C2) Test point overlay: RVA-36A (ASI-70-02C3) ILS-700/720 glideslope filter (ASI-70-02F) ILS-700/720 power supply A8 extensions (ASI-70-02G) ILS-700/720 loading tool (ASI-70-02H) ILS-700/720 A1A18 extension block (ASI-70-02KJ) DFA-701/901 interconnect test cable (ASI-70-02K) 51RV/-4/-5/ILS-700 N1 DC source (ASI-22-F) Micro test adapter [MST-903] (ASI-713) Ident signal generator [morse code gen.] (ASI-714) ILS-700 A1 tuning cover (ASI-715-1) ILS-700 Test cover (ASI-715-2) Cooling tray (ASI-722-3)
