DME/LRA/Discrete Functional Interface Unit

Product Description

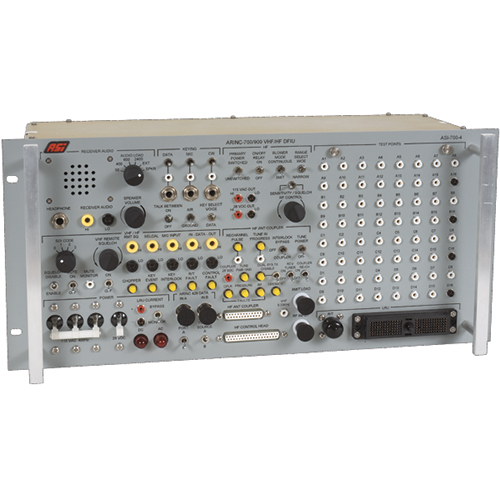

The ASI-700-3 discrete function interface unit is functionally equivalent the the T1203 and is designed to test the Rockwell Collins ARINC 700/900 series DME and radio altimeter line replaceable units (LRU).


This test unit works in conjunction with an ARINC 429/629 data bus generator to provide the LRU with all voltages, discretes, control inputs and outputs required for ""by the book"" testing per the maintenance manual. The option ASI-502 can be used as an DME/LRA ARINC 429 control head simulator.

Specifications

• Dimensions:
  8.75 x 19.00 x 6.00 in
• Power:
  28 VDC/115 VAC 400 Hz
• Supplied Equipment:
  AC mating connector DC mating connector
• Optional Equipment:
  ARINC 429 control head simulator (ASI-502) ASI-700-2/-3/-4 to T1200() cable (ASI-700XA) DME-700 / DME-900 cable (ASI-70-03A) Test point overlay: DME-700 (ASI-70-3A1) Test point overlay: DME-900 (ASI-70-3A2) LRA-700 / LRA-900 cable (ASI-70-3B) Test point overlay: LRA-700 (ASI-70-3B1) Test point overlay: LRA-900 (ASI-70-3B2) ERT-530 cable (ASI-70-3C) Test point overlay: ERT-530 (ASI-70-C1) LRA-900 RF transmitter tuning tool (ASI-70-30D) Micro test and adapter [MST-904] (ASI-706) DME-700/-900 A4 alignment cover (ASI-707A) DME-700/-900 A3 alignment cover (ASI-707B) DME-700/-900 A5 alignment cover (ASI-707C) DME-700/-900 suppressor load (ASI-708) Micro test adapter [MST-905] (ASI-716) LRA-700/-900 altitude simulator fixture (ASI-717) LRA-700/-900 RF tuning cover (ASI-718) LRA-700/ pulse gen test box (ASI-719)

Product Codes

• Mfr Part No
  ASI-700-3
• ECCN
  7B994
• SCHEDULE B CODE
  8544.19.0000
